Kenmore 5301 24", Bisque , Under Cabinet Hood, 190 CFM

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

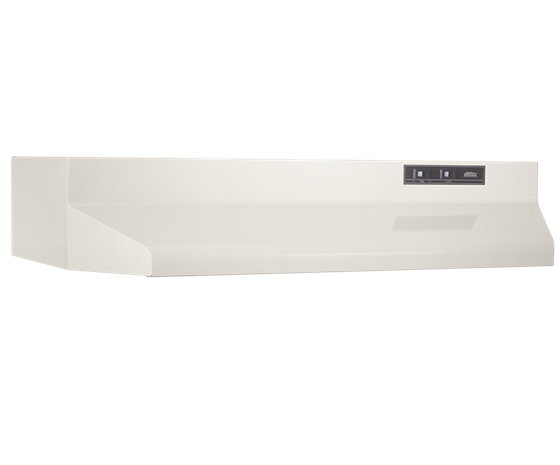

Kenmore 5301 24", Bisque , Under Cabinet Hood, 190 CFM
Kenmore 5301 24", Bisque , Under Cabinet Hood, 190 CFM breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
*422402 Complete New Unit $53.04
1S98006621 Outlet Box Cover $3.98
2S99170245 #8-18 x 3/8 Sheet Metal Screw* $1.62
4S99110437 Light Lens $4.93
5S97011217 Screw/Nut Kit (Includes 2 - #10-16 x .500 screws and 2 - #10-16 sheet metal nuts) $3.60
6S99020272 Fan Blade $4.95
7S99260428 #6-32 Locking Nuts* (2 Required) $0.68
8S98005568 Motor Mounting Bracket $1.96
9S97012248 Motor Assembly (Includes Key Nos. 6, 7, & 8) $41.04
10S97006931 Aluminum Filter $9.88
11S99420472 Filter Retainer $4.05
16S97010709 Nameplate - Black $3.98
17S97016970 2-Speed Motor Switch - Black (Includes Key No. 18) $4.86
17S97016971 2-Speed Motor Switch - White (Includes Key No. 18) $4.86
18S97016970 Light Switch - Black (Includes Key No. 17) $4.86
19S97005678 Motor Receptacle with Wires $2.84
21S97010792 7” Round Damper (Model 42000D only) $22.59
