Kenmore 5390 Kitchen Rangehood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

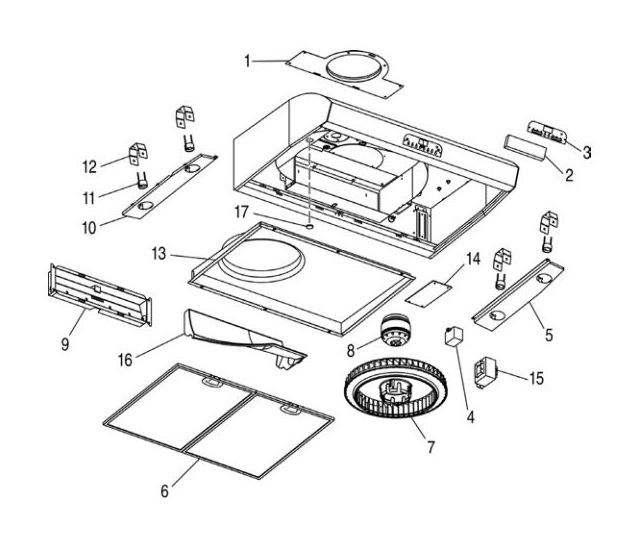

Kenmore 5390 Kitchen Rangehood Parts breakout large

Part Key	Part Number	Description	Unit Price
1	S97018567	7” Round Duct Plate (includes mounting hardware)	$27.26
2	S97018257	User Interface Assembly Black (includes interface, nameplate, mounting hardware)	$116.56
3	S99528259	Nameplate, Black This product has been discontinued
4	S97018568	Capacitor Kit (includes wire nuts, mounting screw)	$10.67
5	S97018227	Light Panel RH Stainless (includes mounting hardware)	$28.20
6	S97018207	Filter Kit for 42” (3 per bag)	$156.60
7	S97018569	Blower Wheel (includes spring clip)	$132.54
8	S97018570	Motor Kit (includes motor, isolators, mounting hardware) This product has been discontinued
9	S97018571	Damper / Duct Connector (includes mounting hardware)	$15.12
10	S97018231	Light Panel LH Stainless (includes mounting hardware)	$28.20
11	S97017731	Lamp Socket (includes lamp socket, wire nuts, mounting screws)	$27.26
12	S97018233	Lamp Socket Bracket	$27.26
13	S97018574	Bottom Pan 42” (includes mounting hardware)	$113.83
14	S97018260	Circuit Board	$369.42
15	S97018262	Transformer (includes mounting hardware)	$160.74
16	S97018575	Vertical Diverter	$32.90
17	S97018582	Rubber Bushing This product has been discontinued
	S97017735	Parts Bag	$27.26
	S99526707	Suction Cup Tool	$27.26
	S97018252	Heat Sensor	$27.26
	S97018253	Fuse	$27.26
	S97018261	Ribbon Cable Kit (contains 3)	$31.96
	SV05921	LED (LED MR16, GU10, Base 50 W)	$32.40
	S99260425	Motor Mounting Nut (2 Required & Sold Individually)	$2.40
