Kenmore 5546 500 Cfm Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 5546 500 Cfm Stainless Steel Range Hood Parts

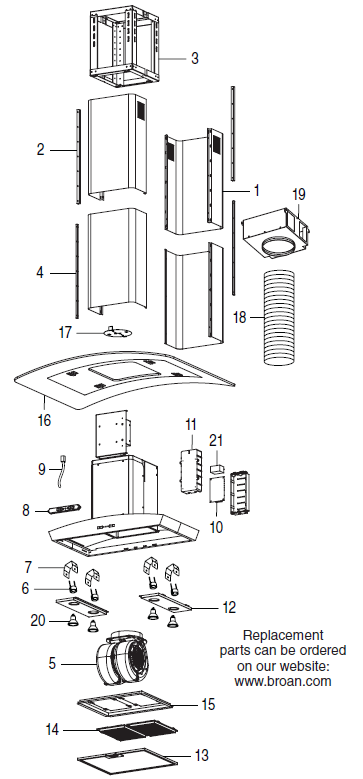

Kenmore 5546 500 Cfm Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* EI5936SS Complete New Unit $1,456.23
1 S99527477 UPPER FLUE TRIM STRIPS (INCLUDES 2) $39.48
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S99527476 DECORATIVE FLUE SET $563.06
3 S99527479 HOOD FRAME ASSEMBLY $104.98
4 S99527478 LOSER FLUE TRIM (2 PIECES) $47.94
5 S99527443 MOTOR/BLOWER ASSEMBLY $440.86
6 S99527444 LIGHT SOCKET $27.26
7 S99527445 LIGHT SOCKET BRACKET $27.26
8 S99527446 USER INTERFACE ASSEMBLY $27.26
9 S99527447 USER INTERFACE CABLE $33.84
10 S99527449 CONTROL BOARD $301.74
11 S99527450 CONTROL ENCLOSURE $32.90
12 S99527454 LIGHT PANELS (PAIR) $140.06
13 S99010366 ALUMINUM GREASE FILTER SET $54.90
14 S99010365 NON-DUCT RECIRCULATION FILTER SET $84.60
15 S99527459 NON-DUCT FILTER TRAY $74.26
16 S99527460 CURVED GLASS PLATE $562.12
17 S99527461 DAMPER ASSEMBLY $27.26
18 S99527462 6" DIA. EXPANDED FLEXIBLE ALUMINUM DUCT $56.70
19 S99527465 NON-DUCT PLENUM ASSEMBLY $104.98
20 S99526798 LED (LED MR16, GU10, Base 50 W) $16.60
21 S99527468 CAPACITOR $27.26
NOT SHOWN S99527470 HEAT SENSOR $27.26
NOT SHOWN S99527471 5 X 20 MM, 5 AMP FAST ACTING FUSE $27.26
NOT SHOWN S99527474 PARTS BAG $27.26
NOT SHOWN S99527481 USER INTERFACE BUTTONS (4-PACK) $27.26
