Kenmore 5551 30" Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

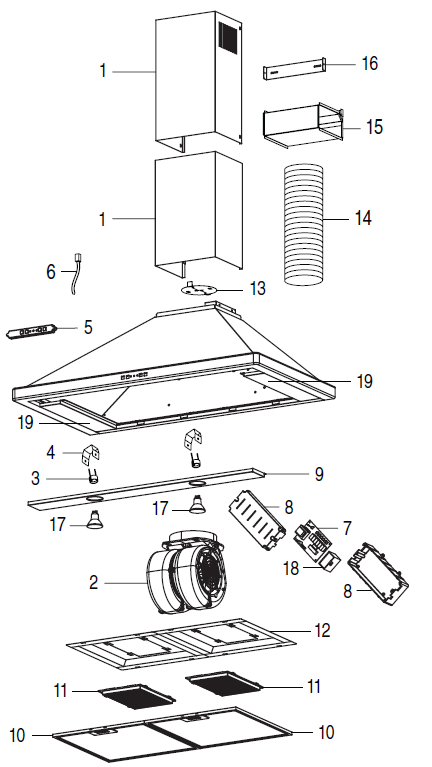

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 5551 30" Stainless Steel Range Hood Parts
Kenmore 5551 30" Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
* EW5830SS Complete New Unit $856.69
0 HCK44 Cord Kit with 6' cord and plug $42.30
1 S99527475 DECORATIVE FLUE SET $311.14
2 S99527443 MOTOR/BLOWER ASSEMBLY $440.86
3 S99527444 LIGHT SOCKET $27.26
4 S99527445 LIGHT SOCKET BRACKET $27.26
5 S99527446 USER INTERFACE ASSEMBLY $27.26
6 S99527448 USER INTERFACE CABLE $33.84
7 S99527449 CONTROL BOARD $301.74
8 S99527450 CONTROL ENCLOSURE $32.90
9 S99527452 LIGHT PANEL FOR 30" HOODS $104.98
9 S99527453 LIGHT PANEL FOR 36" HOODS $98.70
10 S99010368 ALUMINUM GREASE FILTER SET $78.96
11 S99010365 NON-DUCT RECIRCULATION FILTER SET $84.60
12 S99527458 NON-DUCT FILTER TRAY $59.22
13 S99527461 DAMPER ASSEMBLY $27.26
14 S99527462 6" DIA. EXPANDED FLEXIBLE ALUMINUM DUCT $56.70
15 S99527464 NON-DUCT PLENUM ASSEMBLY $98.70
16 S99527467 UPPER FLUE MOUNTING BRACKET $33.84
17 S99526798 LED (LED MR16, GU10, Base 50 W) $16.60
18 S99527469 CAPACITOR $33.84
19 S99527480 SIDE PANEL SET (36" HOODS ONLY) $84.02
NOT SHOWN S99527470 HEAT SENSOR $27.26
NOT SHOWN S99527471 5 X 20 MM, 5 AMP FAST ACTING FUSE $27.26
NOT SHOWN S99527473 PARTS BAG $27.26
NOT SHOWN S99527481 USER INTERFACE BUTTONS (4-PACK) $27.26
