Kenmore 5633 42", Under Cabinet Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 5633 42", Under Cabinet Range Hood Parts

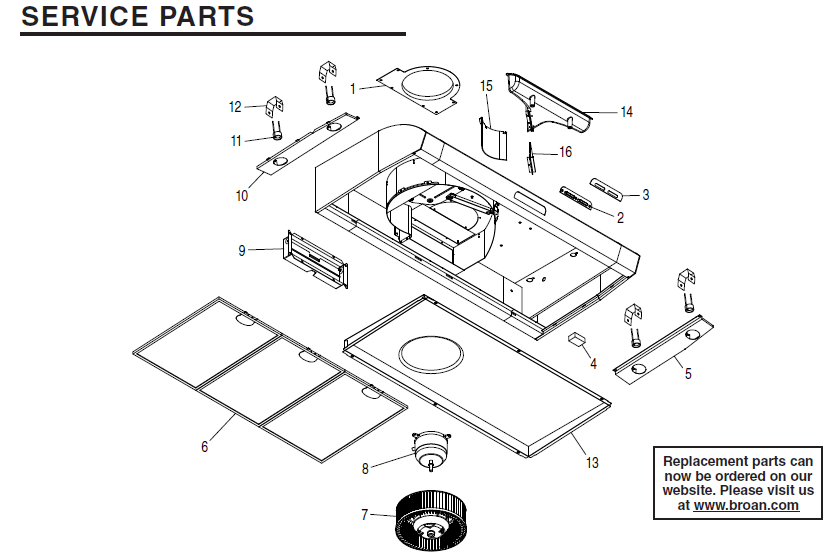

Kenmore 5633 42", Under Cabinet Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown S99526798 LED (LED MR16, GU10, Base 50 W) $16.60
  S99527587 Non-Ducted Filter Clip Kit - Includes 4 Clips
This product has been discontinued

  S97010792 7" Round Inline Damper $42.30
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 HCK44 Cord Kit with 6' cord and plug $42.30
0 35 Wall Hanging Kit $113.40
S97017727 7" Round Duct Plate (includes mounting hardware)
This product has been discontinued

S97017729 Switch Assembly White (includes 2 switches, nameplate, mounting hardware) $33.84
S97017730 Switch Assembly Black (includes 2 switches, nameplate, mounting hardware) $42.30
S99526652 Nameplate, Black $3.80
S99526653 Nameplate, White
This product has been discontinued

S97017736 Capacitor Kit (includes wire nuts, mounting screw) $33.84
S97018225 LIGHT PANEL RH WHITE $22.70
S97018226 LIGHT PANEL RH BLACK $33.84
S97018227 LIGHT PANEL RH STAINLESS $28.20
S97018201 FILTER KIT (INCLUDES 3 ) $126.90
NOT SHOWN  S99010360 NON-DUCT FILTER KIT FOR 42" (3 FILTERS, 12 CLIPS) $53.58
S97018220 BLOWER WHEEL $67.68
S97018221 MOTOR KIT (INCLUDES ISOLATORS & HARDWARE) $173.90
S97017728 Damper / Duct Connector (includes mounting hardware) $15.30
10  S97018229 LIGHT PANEL LH WHITE $21.42
10  S97018230 LIGHT PANEL LH BLACK $22.70
10  S97018231 LIGHTR PANEL LH STAINLESS $28.20
11  S97017731 LAMP SOCKET $27.26
NOT SHOWN  S97018234 LIGHT DIODE $27.26
NOT SHOWN  S97018224 PARTS BAG $33.84
12  S97018233 LAMP SOCKET BRACKET $27.26
13  S97018235 BOTTOM PAN $145.49
14  S97018242 NON-DUCT PLENUM $67.68
15  S97018243 NON-DUCT DIVERTER $27.26
16  S97018244 NON-DUCT PLATE $27.26
NOT SHOWN  S99526707 Suction Cup Tool (for assistance in light bulb install/removal) $27.26
NOT SHOWN  S99526798 LED (LED MR16, GU10, Base 50 W) $16.60
