Kenmore 58163 Rangemaster Power Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Kenmore 58163 Rangemaster Power Range Hood Parts

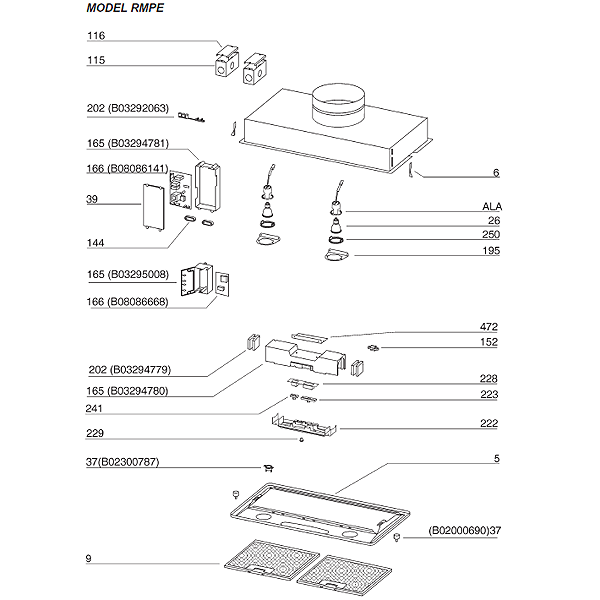

Kenmore 58163 Rangemaster Power Range Hood Parts breakout large

Part Key	Part Number	Description	Unit Price
*	RMPE7004	Complete New Unit This product has been discontinued
0	HCK44	Cord Kit with 6' cord and plug	$42.30
1	SB08087153	Aluminum Grease Filter - (12 5/8 x 6 5/8) sold each 2 required	$33.84
2	SV05921	LED (LED MR16, GU10, Base 50 W)	$32.40
3	SB02300891	Halogen Bulb - 2 Req. (Type JC, 12V, 20 Watt, G4 or T4 Base) RMPE-A,B	$18.95
4	SB02009102	Round Chrome Ring RMPE7000-C,D	$33.84
5	SB02300906	Round Lens, Chrome Ring and Socket RMPE7004-B	$27.26
7	SB06108882	Light Socket RMPE7000-C,D	$33.84
8	SB02300787	Heat Sentry RMPE7004-B,C,D	$59.22
9	sb02300739	Transformer RMPE7004-A,B	$135.36
10	SB02300782	Fuse (4 Amp. 5mm x 20mm) RMPE7004-A,B	$27.26
11	SB02300674	Fuse Holder with Plastic Cap - RMPE7004-A,B This product has been discontinued
12	SB06107409	Switch Assembly RMPE7004-A This product has been discontinued
12	SB06103829	SWITCH FOR (C,D)	$169.20
13	SB06108348	Switch Asembly RMPE7004-B This product has been discontinued
14	SB08086141	Circuit Board (Larger Circuit Board with Triak) RMPE7004-A,B,C,D	$87.42
15	SB08086668	Circuit Board (Smaller Circuit Board) RMPE7004-B,C,D	$84.60
16	SB03295081	Light Switch Slide Button	$33.84
17	SB03295082	Fan Switch Slide Button	$33.84
18	SB03295080	Switch Cover RMPE7004-A,B	$27.26
19	SB03295043	Switch Cover RMPE7004-C,D	$7.78
20	SB03201014	Red Warning Pilot Lamp Cover	$27.26
21	SB003185305	Grill Bottom RMP1000-C,D Frame that Filters Attach to, with Holes for Lights and Switch This product has been discontinued
22	SB183100509	Grill Bottom - Frame that Filters Attach to, with Holes for Lights and Switch (Includes Grease Filters) RMPE7004-C,D This product has been discontinued
22	SB003183627	Grill Bottom - Frame that Filters Attach to, with Holes for Lights and Switch (Includes Grease Filters) see sb183100509 This product has been discontinued
23	SB02000690	Screw (Thumb Screw) for Attaching Grille (2 Required) RMPE7004-C,D This product has been discontinued
26	SB03293066	Slide Black Plastic Fastener for Attaching Bottom Grid (Replaced SB080814099)	$18.00
28	SB02011013	Clasping Side Spring for Mounting Hood, - 2 Req	$33.84
29	SB080810168	Parts Bag - Contains 4 Screws (3.2mm x 13mm)	$27.26
	SB08080360	Switch Circuit Board Only	$76.14
	SB03294780	Switch Box Only	$57.34
30	SB08085018	Plastic Duct Connector With Flaps and Spring RMPE7004-A,B,C (C Used Until September 2007)	$67.68
31	SB08092501	Metal Duct Connector With Flaps and Spring RMPE7004-C,D (After September 2007) This product has been discontinued
	SB08086141	Large Circuit Board with Triak	$87.42
	SB03294781	Electrical Box for Large Circuit Board	$27.26
	SB03294033	Cover for Large Circuit Board Electrical Box	$31.96
	SB03295008	Electrical Box for Small Circuit Board - RMPE7004-B,C,D	$33.84
	SB03295005	Transformer Protective Cover - RMPE7004-A,B This product has been discontinued
	SB03294776	Transformer Terminal Cover - RMPE7004-A,B This product has been discontinued
	SB03295035	Electrical Box for Fuse & Fuse Holder - RMPE7004-A,B	$33.84
	SBE3334250	Wiring Box - Incoming / Outgoing - 2 Required	$19.28
