Nautilus NV Range Hood Parts

Listed below are the parts available for this model.

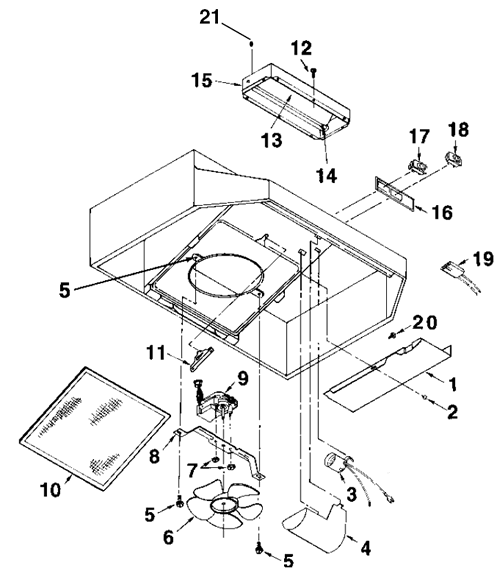

Use the parts explosion image to locate the associated part key number. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Nautilus NV Range Hood Parts
Nautilus NV Range Hood Parts breakout small
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99010316 Aluminum Filter (11-1/4 X 11-3/4) $27.26
  S97012248 Complete Fan Assembly $80.84
  S99080218 Motor $80.84
  S06118-00 Fan Blade for a D shaped shaft motor $27.26
  S99420040 Hairpin Clip for Blade $27.26
  S98005568 Motor Mounting Bracket $27.26
  S98006621 Outlet Box Cover for Models NN-F, NV-F, G $27.26
  S97016970 Fan & Light Switch Set $42.30
  S97010966 Lamp Socket $27.26
  S99110437 Light Lens (4 3/4 X 3 X 1 1/2) $27.26
  S99420472 Plastic Filter Retainer $27.26
  S97005544 Damper Assembly $33.84
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S99150478 8-18 x 3/8 Phillips Truss Sheet Metal Screws (2 Required) $27.26
  S97011217 Screw/Nut Kit (includes 2- #10-16 x .500 screws and 2 - #10-16 sheet metal nuts) $34.78
  S99020272 Fan Blade for a star shaped shaft motor $27.26
  S99260428 # 6-32 Locking Nuts (2 required) $18.00
  S97006931 Aluminum Filter $27.26
  S99150415 #8B x 1/4 Hex Head Sheet Metal Screws (2 Required) $27.26
  S98005221 Damper Flap $27.26
  S99100379 Damper Bushing $18.00
  S97005544 Damper Assembly $33.84
  S97010709 Nameplate $27.26
  S97005678 Motor Receptacle with Wires $33.84
  S99150471 #10-32 x 1/2 Green Ground Screw $18.00
0 HCK44 Cord Kit with 6' cord and plug $42.30
