NuTone 3080 Range Hood Power Unit Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 3080 Range Hood Power Unit Parts

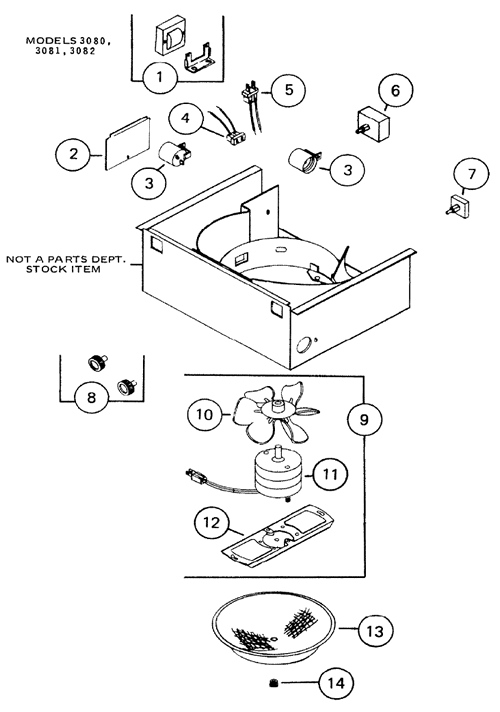

NuTone 3080 Range Hood Power Unit Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
4S99270982 Receptacle $3.44
1018760000 FAN BLADE (METAL - 6 BLADE) $14.40
11S26754SER MOTOR Modified - JA2M121 JA2M121N, CCW, SHAFT SIZE 5/16" X 1 1/2", 2 PRONG 110 PLUG $105.76
 19150000 10 1/2 " Bowel shape filter, obsolete see s99010122(no hole in bottom) $16.37
