NuTone 663LN Exhaust Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 663LN Exhaust Fan/Light Parts

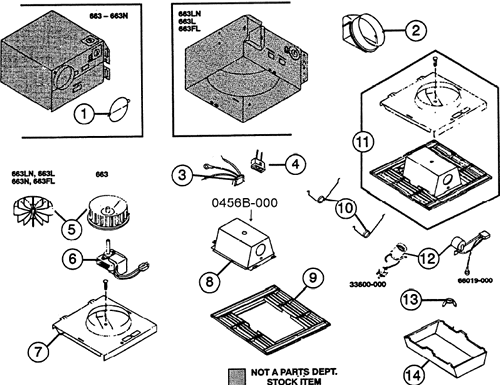

NuTone 663LN Exhaust Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  763 Complete New 763, New production unit. Will not fit into existing housing. Rough in 8"x 8.25" $88.38
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S101183000 Duct Adapter $27.26
4 S99270982 Receptacle (Black) $18.00
5 S68920000 Impeller Wheel $27.26
5a 65462000 Compression Clip To Hold Blower Wheel On Motor Shaft $1.48
6 S65878000 Motor - #J23805059, Shaft Length 1-3/4", Ccw $96.82
14 S65776000 Lens - Plastic (8 3/4" X 5 3/4" X 2") $34.78
14 S85315000 Grille/lens (12 1/4 x 10 3/4 new style) $85.54
  S97014094 Alternative Grille/Lens 10 5/8 X 11.25 $38.54
