NuTone 665 Valuetest Heat-A-Ventlite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 665 Valuetest Heat-A-Ventlite Parts

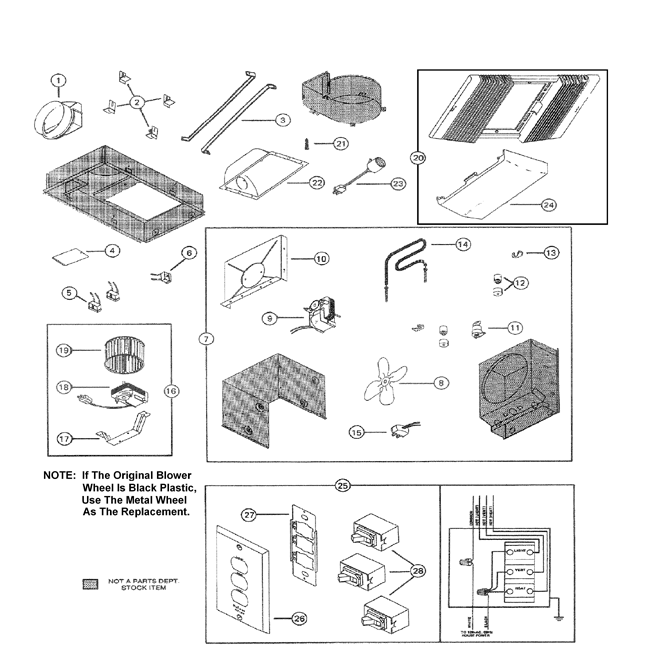

NuTone 665 Valuetest Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BHFLED80 New Complete Unit, will not fit into exsisting housing. 14.25" X 8.25" X 5.75" Rough in dimensions 16.25"-X 9.75" GRILLE $197.33
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S101183000 Duct Adapter $27.26
3 85585000 Hanger Rod $4.37
5 S66204000 Plug-Receptacle (Black) $27.26
6 S56721000 Plug Receptacle (White)
This product has been discontinued

8 17728000 Fan 4-Blade Metal For Heat Side $14.40
9 1166A000 Motor Modified - Heater Motor/Blade $95.50
11 S53702000 Thermal Fuse Link $27.26
12 S69314000 Insulator Bushing Set
This product has been discontinued

13 S27546000 Element Support $27.26
14 S58120000 Heating Element $42.30
17 23255000 Motor Mount $1.58
16 53709000 Motor - Obsolete See Model #85598000
This product has been discontinued

16 S53707000 Vent Kit W/Metal Blower Wheel For 665 Or 665S Obsolete Use Part 85598000
This product has been discontinued

16 85598000 Vent Kit - Includes Modified Motor, Blower Wheetl& Mounting Bracket $99.78
19 S85600000 Blower Wheel - W/Clip For Use W/ 53709 Motor Only, (4" X 2 1/4"), Ccw, Black Plastic $27.26
19 S65467000 Blower Wheel - W/Clip For Use W/Motor 89850 Only, Metal, (3 3/4" X 1 7/8") $27.26
20 S89852000 Grille & Lens (16 1/4" X 9 3/4 X 1 3/4) $67.68
24 S53740000 Lens - (5 1/4" X 9 3/4") Plastic $27.26
25 66W Switch $43.42
  54157000 Plug Assembly White $2.99
