NuTone 672 Exhaust Ceiling Fan 110Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 672 Exhaust Ceiling Fan 110Cfm Parts

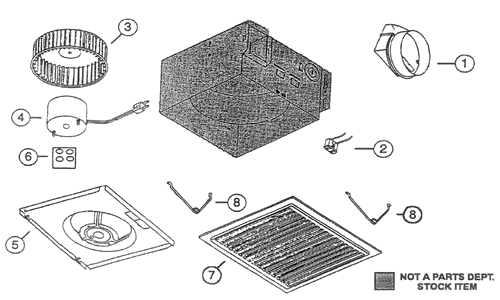

NuTone 672 Exhaust Ceiling Fan 110Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  AE110 New production (will not fit into existing housing) $155.26
1 S101183000 Duct Adapter $27.26
1 S97017703 Power Unit Kit- Motor, Blade & Flat Bracket (100cfm) $154.16
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S99270982 Receptacle (Black) $18.00
3 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
3 S10060300 Blower Wheel for the splined motor Cw, 6-1/8" X 2" $19.83
4 S89615000 Motor d shape to work on 5901a blade $152.28
6 0406A000 Bumper Kit $10.33
7 S97017607 Grille W/Springs - (10 1/2" X 10 1/2") $33.84
  FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
  FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
