NuTone 696N Ceiling/Wall Ventilation Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 696N Ceiling/Wall Ventilation Fan Parts

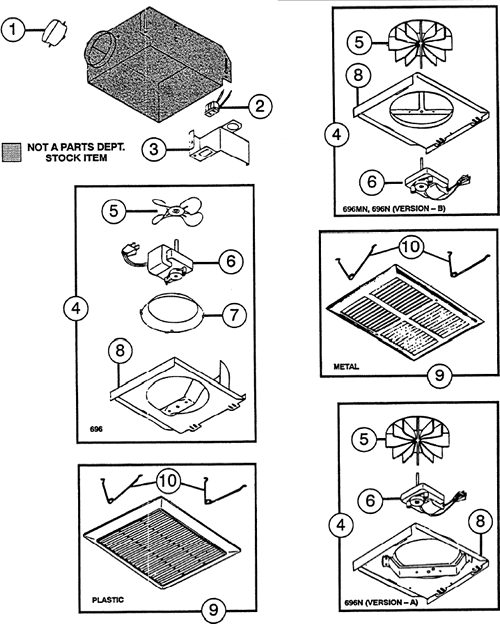

NuTone 696N Ceiling/Wall Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  696N Brand New Production (Will Not Fit Into Existing Housing 7 1/8 x 8) $21.98
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 FG500NS Bathroom Exhaust Fan Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Bathroom Exhaust Fan Grille/Cover w/ LED Light (FG600S) $40.18
  S97017068 Grille W/Spring 9 X 8 3/4 $27.26
1 29865000 Louver $18.00
1 C350BN Power Unit(B Ver Motor Mounts Same Side As Shaft Ccw, Plug Hole In Center 7 1/8 x 8)) $39.89
2 S99270982 Receptacle (Black) $18.00
4 S98006791 Motor Plate (A version bracket) $27.26
5 S68920000 Impeller Wheel-"D" shape $27.26
5 S61338000 Blower Wheel for (round Motor shaft) $27.26
  S0838b000 Motor Assembly W/ Grille $74.26
6 S65878000 Motor - #J23805059, Shaft Length 1-3/4", Ccw(A Version Mounting Oposite Shaft)) $96.82
6 S29938000 Motor Original (Ccw Metal Blade Shaft 1 1/8, Shaft Mounts Opposite Side) $45.98
6 S34484000 Motor (B Version Ccw Mounting Is Same Side As Shaft-See C350Bn) $34.06
8 34487000 Mounting Bracket (hole in middle) $4.54
  QK60 Bath Fan Uprgrade Kit will fit into existing housing (will only work on the G,H,J,K) will not work on the ABCDE
This product has been discontinued
  BKR60 Upgrade Kit 60 cfm 3.0 sones ( housing7-1/2" x 7-1/4/ 8" x 7-1/4/8-1/16" x 7-3/8" $65.99
0 FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $98.44
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led 10.24 x 9.75 $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED 10.25 x 9.75 $87.62
  FG800SPKS Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.63
  696RNB Builders Finish Kit
This product has been discontinued
  690RA Builders Housing Pack Kit
This product has been discontinued
  690RMTLA Builders Housing Pack Kit
This product has been discontinued
  83102000 Motor Only $25.00
