NuTone 696N-R01 Exhaust Fan 50 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 696N-R01 Exhaust Fan 50 Cfm Parts

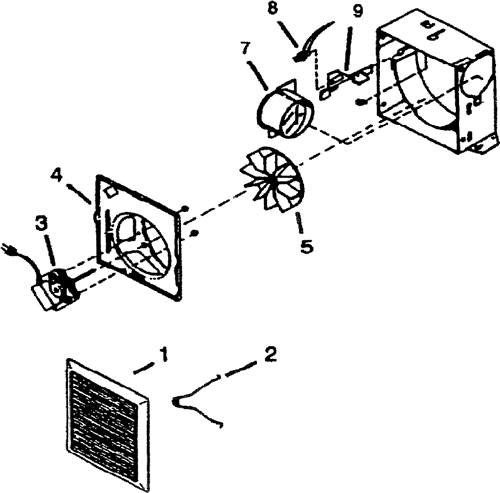

NuTone 696N-R01 Exhaust Fan 50 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  696N Brand New Production (Will Not Fit Into Existing Housing 7 1/8 x 8) $21.98
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97017607 Grille/Spring 10.5 X 10.25 SPRING GAP 8 1/4 $33.84
1 S97017068 Grille Assembly W/ Springs SPRING GAP 7. $27.26
2 82429000 Spring
This product has been discontinued

3 696RNB Fan Assembly Motor/Blade/Flat Bracket (plate w/hole in corner 7.5 X 7.25) $35.65
3 S97012041 Motor - Shaft Size 1 5/8", Ccw - Old Part# Is 99080402 $59.22
5 S6892000 Impellor Wheel $8.00
5 82404000 Push Nut - For Blower Wheel $0.54
7 S97016377 Duct Adaptor Assembly only works with the E-J models $27.26
8 S99270982 Receptacle (Black) $18.00
9 82432000 Outlet Box
This product has been discontinued

  EOF70 Builder Finish Kit
This product has been discontinued

  1688F Builder Housing Kit
This product has been discontinued

  6884H Builders Kit Housing Pack
This product has been discontinued

  6884 Builder Finish Pack Kit
This product has been discontinued
