NuTone 769RL Bathroom Exhaust Fan-70 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

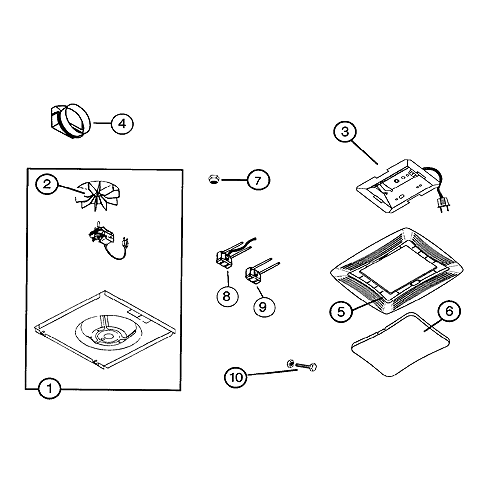

NuTone 769RL Bathroom Exhaust Fan-70 Cfm Parts
NuTone 769RL Bathroom Exhaust Fan-70 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  769RLKIT Up Grade Kit to a 70 cfm, Fan Assembly, Grill/Lens, Reflector/Led Bulb $118.00
1 S0504B000 Motor, Blade & Bracket Assembly $73.32
0 S1022B000 Stud & Nut $33.84
1 S87547000 Motor Only- (See 0504B Motor Blade Bracket) $78.02
2 S82403000 Blower Wheel - White Plastic, 5"X 1 1/4" $27.26
3 S89765000 Reflector (Old Version For Use 85315) $27.26
3 S101181000 Lamp Socket $27.26
3 S1019B000 Reflector &Lamp Socket(New Version With New Grille 99111380 $33.84
3 S61604000 Reflector / Socket $33.84
4 S101183000 Duct Adapter $27.26
5 S99111380 Grille Square Works With Lens 99111480(New Version#2 Square 12 X 10 3/4)(Lens Sold Separately) $27.26
6 S99111408 Lens - New Square Lens Works With Grille 99111380 (New#2 Version 8.5X7.25)(Grille Sold Separately) $33.84
6 S85315000 Grille & Lens -12 1/8X 10 3/4" -Old Style Rectangle Lens Version#1 $85.54
5 S85316000 Grille Only - No Lens, 12 1/8" X 10 3/4" (Old Version Rectangle) (Lens Sold Separately) $84.60
6 S89108000 Lens - Plastic (10 3/4" X 5 1/2" X 1/2") ( Version#1 Use With 85315) (Grille Sold Separately) $27.26
8 S99270982 Receptacle (Black) $18.00
9 S82304000 Receptacle (White) $18.00
10 S86928000 Receptacle Bracket
This product has been discontinued
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  763RL/769RL Housing w/ plugs $9.95
  FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 7" spring gap) $40.18
  FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 7" spring gap) $50.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
