NuTone 769RL-R01 Exhaust Fan/Light 70 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 769RL-R01 Exhaust Fan/Light 70 Cfm Parts

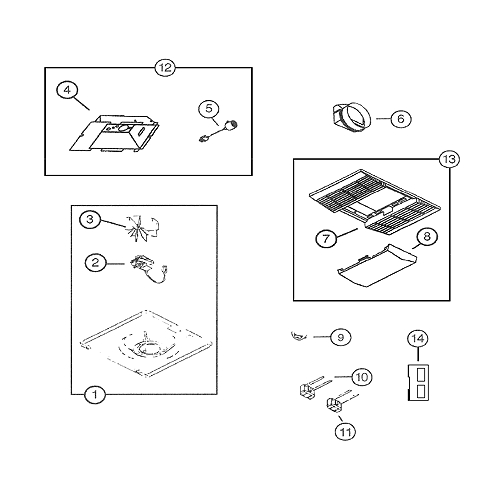

NuTone 769RL-R01 Exhaust Fan/Light 70 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  769RLKIT Up Grade Kit to a 70 cfm, Fan Assembly, Grill/Lens, Reflector/Led Bulb $118.00
0 S1022B000 Stud & Nut $33.84
1 S0504B000 Motor Exhaust Kit, Motor,Blade,Bracket 70 Cfm $73.32
3 S82403000 Blower Wheel - White Plastic, 5"X 1 1/4" $27.26
4 S1019B000 Reflector & Lampholder $33.84
6 S101183000 Duct Adapter $27.26
7 S99111380 Grille - 12" X 10 3/4" Needs Lens S99111408 (Version#2) (Lens Sold Separately) $18.90
8 S99111408 Lens - New Square Lens Works With Grille 99111380 (Version#2 8.5X7.25) (Grille Sold Separately) $33.84
9 16113000 Acorn Nut $0.48
10 S99271252 Receptacle black $27.26
11 S99270981 Receptacle - White $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  FG500NS Upgrade Grille/Cover w/ LED Light (FG600S) (11 x 9 3/4 7" spring gap) $40.18
  FG600S Upgrade Grille/Cover w/ LED Light (FG600S) (11 x 9 3/4 7" spring gap) $40.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
