NuTone 821NJF Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 821NJF Utility Fan Parts

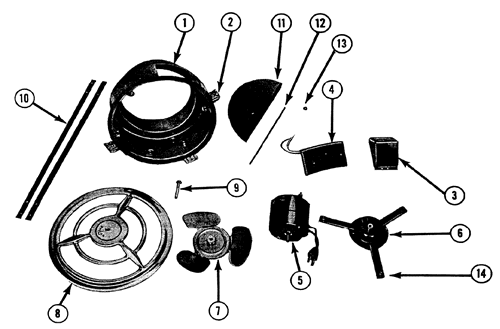

NuTone 821NJF Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99010042 Aluminum Filter - 9 1/2" Diameter $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
5 S16653SER Modified Motor - 1"Shaft (Cw 2800Rpm 1/4 diam) $101.75
7 S16631000 Blade (3 Blade Metal) $41.36
8 S99111332 Grille - (Polymeric) (11" Round) $42.30
8 S97011918 Grill Knob For White Plastic For Grille (use w/99420585) $18.00
  S99420585 Grille Screw white 1 3/4 (not shown used w/ 97011918) $33.84
  505 New production (will not fit into existing housing) 8" $151.25
  S97018803 NLINE DAMPER - 7" ROUND $31.02
