NuTone 8663NLP Deluxe Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

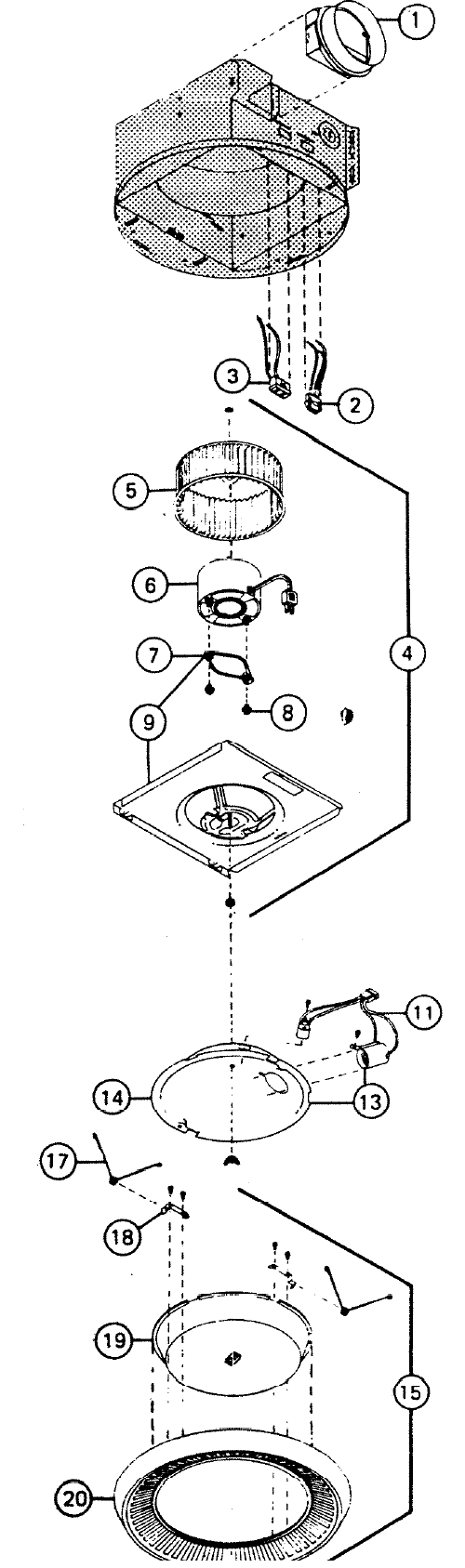

NuTone 8663NLP Deluxe Fan-Light Parts breakout large

Part Key	Part Number	Description	Unit Price
	750	Brand new white grille 15" round (will not fit into same housing)	$217.29
	S99260425	Motor Mounting Nut (2 Required & Sold Individually)	$2.40
	S89615000	Motor Modified Only ccw (1" d shaft to work w/5901a000)	$152.28
1	S101183000	Duct Adapter	$27.26
3	S99270982	Receptacle (Black)	$18.00
5	SNT5901A000	Blower Wheel - White Plastic, CCW, 6-1/8" X 2"	$27.26
5	S10060300	Blower Wheel for the splined motor Cw, 6-1/8" X 2"	$19.83
6	S97017705	Power Unit Assembly(May Need To Put Motor/Blade Onto Existing Bracket	$144.76
8	S0463A000	Locknut Grommet Set-4	$2.21
11	S85950000	Lamp Socket	$27.26
17	SNT0444A000	Spring Set This product has been discontinued
18	S33977015	Retainer Clip For Lens This product has been discontinued
