NuTone 8663RP Decorative Fan/Light 100 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8663RP Decorative Fan/Light 100 Cfm Parts

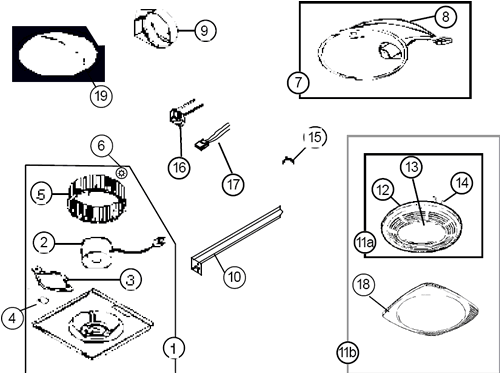

NuTone 8663RP Decorative Fan/Light 100 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 8663RP Brand New 8663rp, May not fit into existing housing $125.67
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
S97017705 Exhaust Unit Assembly Splined Motor(May Need To Use Old Bracket) $61.24
2S89615000 Motor Only replaced 0434a $54.42
S32787000 Motor Insul Mount $4.04
S32788000 Ground Clip $0.62
5SNT5901A000 Blower Wheel - White Plastic, Cw, 6-1/8" X 2" $17.54
6S63007000 Nut-Push 1/4 ( For Older Blade) $0.86
7SNT85974000 Reflector/Socket Included $25.42
8S85950000 Lamp Socket $14.70
S101183000 Duct Adapter $8.48
10S44388000 Hanger Bar $2.81
11bS97017702 Grille Assy(Lens/Grille/Springs for fixtrues after 2008) 15"Round $43.44
12S85968000 Grille - Obsolete See S97017702 15" Grille, Lens & Spring
13S61753000 Lens - Thin Glass 9 1/2" Round X 3/4" ( Not Like The Old Glass) (S97017702 Grille) $16.18
16S99270982 Receptacle - Black $4.00
13S85937000 Glass lens thick prior to 2008(fits old grill not availble $24.69
14 S0444A000 Spring Set $4.12
17S99270981 Receptacle - White $2.22
