NuTone 8832WH Low-Profile Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 8832WH Low-Profile Exhaust Fan Parts

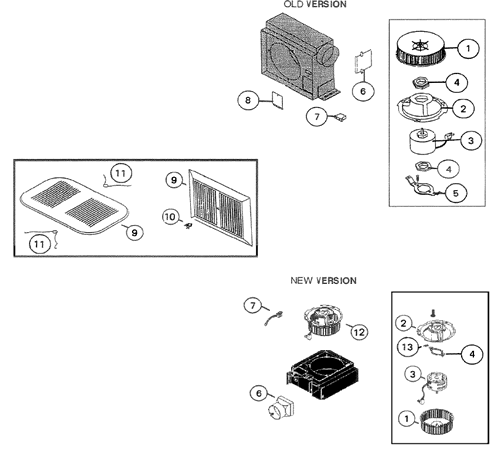

NuTone 8832WH Low-Profile Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  RCM700 Magnetic Universal CleanCover Bath Fan Replacement Grille 13x13 base 11 7/8 x 11 7/8 top cover $32.84
  RCM600 Magnetic CleanCover™ Bath Fan Replacement Grille with LED Light 12x12 base with 11 7/8 x 11 7/8 top cover $40.18
0 S1022B000 Stud & Nut $33.84
1 SNT5901A000 Blower Wheel - White Plastic, CCW, 6-1/8" X 2" $27.26
2 42199000 Motor Mounting Plate
This product has been discontinued
3 SNT86652000 Motor Only(new version B - JA2B099N, Shaft 1/4" x 1", CCW, 2 PRONG PLUG $99.52
3 S84757000 Motor Assy (version OLD 1,2,3,4,5 w/screw for metal grille a version)
This product has been discontinued
3 S84756000 Motor Assy For New Version (Includes 1,2,3,4,13 For White Grille b version)
This product has been discontinued
3A S23405SER Motor Only for (old version (must use old motor brackets2 & 5) ccw $160.74
3 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
4 S19360000 Motor Mount Hex
This product has been discontinued
4 S32787000 Rubber Insul Mount 2-Needed $27.26
5 S1176A000 Motor Clamp & Mount $18.86
6 85209000 Duct Adapter $3.20
7 SNT10034000 Receptacle (Black) $27.26
8 23383000 Outlet Box Cover
This product has been discontinued
9 SNT84719000 Grille Pastic White Grille spring gap 6.75 (9 1/4 X 10 5/8 W/ SPRINGS)see FG701 or S97013576
This product has been discontinued
9 S13178018 Grille Metal White - Finish (10 1/2" X 10 1/2" X 1/2" W/ Center Hole) $57.34
  FG701 Universal CleanCover Grille/Cover (13.25 x 13.25) spring gap 7 & 10 $26.45
  S97013576 Alternative Grille 10 5/8 X 11 1/8 spring gap 6.1/2 $27.26
10 S13173000 Grille Nut
This product has been discontinued
13 32788000 Ground Clip
This product has been discontinued
  SNT0403A000 Springs (2)
This product has been discontinued
