NuTone 9198NT High-Capacity Wall Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9198NT High-Capacity Wall Heater Parts

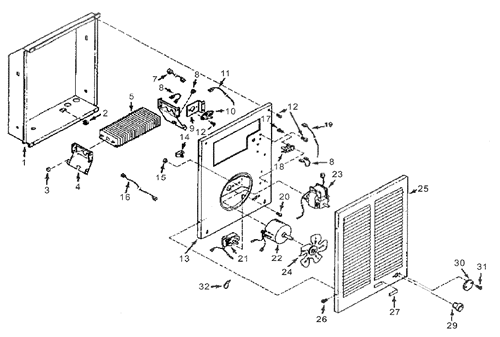

NuTone 9198NT High-Capacity Wall Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  198 new production brand new240v 4000watts (16 3/8 x 20.25 grille) $415.58
  S97013945 THERMAL OVERLOAD $42.30
3 S99030190 FAN DELAY $27.26
4 S98006989 ELEMENT BRACKET $11.16
5 S99270724 HEATING ELEMENT $125.96
6 S99400061 BUSHING $1.75
7 S97008688 BLACK WIRE $27.26
8 S97008690 BLACK JUMPER WIRE $27.26
12 S99150491 SCREW $18.00
13 S97008683 PARTITION PLATE $40.43
14 S93270619 WIRE CLAMP $0.68
15 S99260425 NUT $2.40
16 S97008687 BLACK WIRE $1.84
18 S99270720 TERMINAL BLOCK $1.94
19 S97008691 BLACK POWER WIRE
This product has been discontinued
21 S99030192 THERMOSTAT $76.14
22 S99080251 MOTOR - #JA2M474N, Shaft size 3/4", 240v $112.80
24 S99020255 FAN BLADE $27.26
25 S97013822 GRILLE - (20 1/2" x 16 1/2" x 1 1/4") $278.24
26 S99150478 SCREW $27.26
29 S99360136 KNOB $27.26
30 S99110687 SECURITY COVER $27.26
31 S93150462 SCREW $33.84
32 S93270493 CABLE TIE $0.68
