NuTone 9427 Bulb Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9427 Bulb Heater Parts

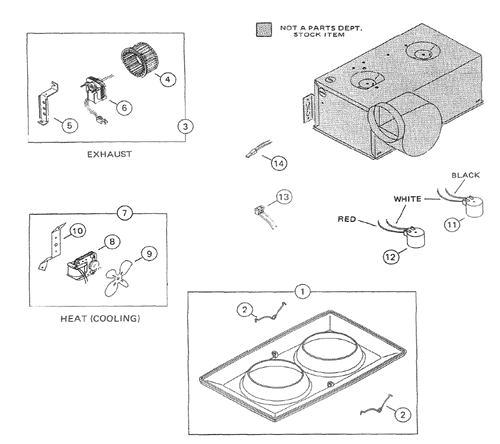

NuTone 9427 Bulb Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  164 Brand new production 9427P (will not fit into existing housing) $81.54
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S89260000 GRILLE W/ "V" sprrings $113.40
3 S89222000 POWER UNIT ASSEMBLY(vent motor,blade,bracket) $177.66
4 S85600000 BLOWER WHEEL - Vent , 4" x 2 1/4", CCW, Black Plastic $27.26
5 S89223000 BRACKET MOTOR MOUNTING $27.26
6 S89224000 MOTOR - Shaft Size, 7/32" x 2 3/16" CCW, 2 Prong Plug $81.78
8 S89256000 MOTOR/Wheel - Modified ccw for heat bulb cooling $47.75
10 S33591000 MOTOR BRACKET
This product has been discontinued

13 57976000 RECEPTACLE $18.00
  PAR40 250 WATT HEAT BULB $18.90
