NuTone 9605 Deluxe Heat-A-Vent Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9605 Deluxe Heat-A-Vent Parts

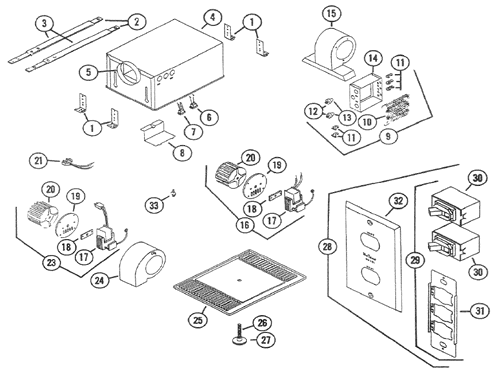

NuTone 9605 Deluxe Heat-A-Vent Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 9905 New current production, will NOT fit into same housing ( rough in14x9.75x7.75) $162.07
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
6SNT10034000 RECEPTACLE (BLACK) $4.00
7S56721000 PLUG RECEPTACLE (White) $4.62
9S99271494 Thermo Protector $8.64
10S58120000 HEATING ELEMENT $14.24
11S27546000 ELEMENT SUPPORT $2.08
13S69314000 INSULATOR BUSHING SET $5.40
16S69355000 HEAT ASSY - MOTOR/BLADE/BRACKET (NO HOUSING) $88.56
17S57768000 MOTOR - (Vent) CCW, Shaft Size 1 1/4", 120V $49.18
17S57769000 MOTOR - (Heat) #J38-075-7072, CCW $52.18
18S69289000 GROMMET KIT $5.18
19S57766000 MOTOR MOUNT PLATE $6.03
20S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $19.54
20S66583000 BLOWER WHEEL - (Heat), CW, 3 3/4" x 2" $20.12
21S51073000 PLUG - BLACK $7.64
23S69357000 EXHAUST ASSY-VENT MOTOR/BLADE/BRACKET (NO HOUSING) $101.86
27S13173000 GRILLE NUT $5.82
2868W WHITE 2 ROCKER SWITCH $22.89
