NuTone 9660 Deluxe Heat-A-Lite Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9660 Deluxe Heat-A-Lite Parts

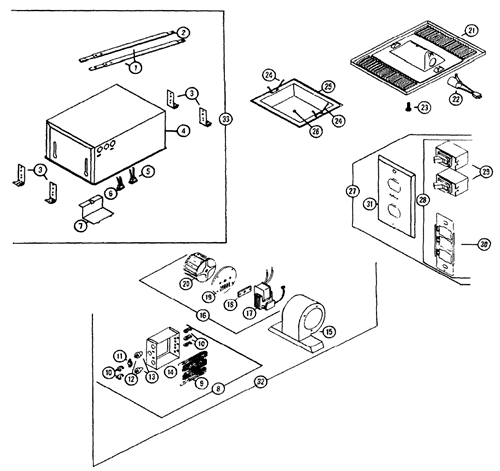

NuTone 9660 Deluxe Heat-A-Lite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
5 S56721000 PLUG RECEPTACLE (White/Red) 3 left then obsoleted $50.76
6 S99270982 RECEPTACLE (BLACK) $18.00
9 S58120000 HEATING ELEMENT $42.30
10 S27546000 ELEMENT SUPPORT
This product has been discontinued

11 S99271494 THERMAL PROTECTOR $27.26
13 S69314000 INSULATOR BUSHING SET
This product has been discontinued

16 S69355000 BLOWER ASSY - HEAT (motor,blade,round bracket-no housing) $123.14
17 S69285000 MOTOR - (#14 Heat Motor ONLY) CCW, Shaft size 1 5/8"
This product has been discontinued

18 S69289000 GROMMET KIT
This product has been discontinued

19 S57766000 MOTOR MOUNT PLATE
This product has been discontinued

20 S66142000 BLOWER WHEEL - Metal, 3 3/4" X 2 7/8" $33.84
32 69297000 HEAT B-UNIT ASSY (MOTOR/BLADE/BRACKET Heat box) no housing
This product has been discontinued

  S11390000 DUCT CONNECTOR $27.26
  S15346000 Insullator Bushing Replaced by 69314000 $3.85
  52863015 Screw 14x 1/34 $1.85
