NuTone 9815WH Wall Heater Forced Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 9815WH Wall Heater Forced Fan Parts

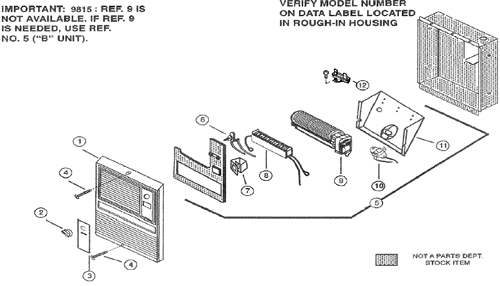

NuTone 9815WH Wall Heater Forced Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  9815WH New Current Production 9815wh 10.5X12.5X3 3/8 rough 11 9/16 x L14 3/4 finish grille $176.96
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99111432 NEW WHITE GRILLE (version e need knob 99360253) $67.68
1 S99360253 NEW WHITE KNOB ( goes w/99111432) $27.26
  S97005422 WHITE RECEPTACLE
This product has been discontinued

  S98006975 WIRE COVER FOR ABOVE RECEPTACLE TO SNAP INTO $27.26
  S99390015 GROUND CLIP $0.72
  S98003036 HOUSING MOUNTING BRACKET $27.26
3 57276000 NAMEPLATE-STANDARD
This product has been discontinued

4 S99150528 GRILLE SCREW - #8-18 X 1.25" $33.84
4 S52872039 GRILLE SCREW 9815WH-C,D,E $27.26
5 S97009808 HEATER ASSEMBLY 9815WH- B $235.94
5 S97018622 HEATER ASSEMBLY 9815-C,D,E $261.32
5 44954000 B-UNIT ASSEMBLY (a,b version) $167.36
5 97018466 HEATER ASSY (version C,D,E new production) $207.25
6 S57271000 THERMOSTAT W/NUT $27.26
6 S99030191 THERMOSTAT $33.84
7 S97008717 TERMOSTAT WITH MOUNTING NUT $30.08
7 S98006973 THERMOSTAT BRACKET $27.26
7 S99260464 THERMOSTAT LOCK NUT $27.26
7 33384000 THERMOSTAT COVER $1.33
8 S99270741 ELEMENT (only fits 9815WH-B) $59.22
9 S33178000 BLOWER & Motor $172.96
9 S99080248 MOTOR $43.24
9 S99020130 BLOWER WHEEL $27.26
10 S99271433 THERMO PROTECTOR $51.70
10 S99030194 THERMAL OVERLOAD $27.26
11 S61962000 HEAT BOX $28.35
12 S99521763 THERMAL FUSE (f version only) $27.26
