NuTone CV570 Cyclonic Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV570 Cyclonic Central Vacuum Can Parts

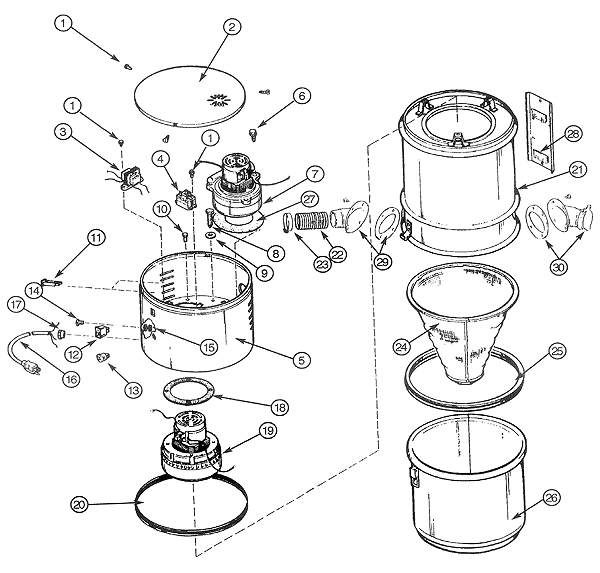

NuTone CV570 Cyclonic Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
**S1803A000 BRUSH SET (2) $21.83
20768B000 TOP COVER - BNC # 10941076 $31.54
30649B000 TRANSFORMER $47.61
40648B000 RELAY - BNC # 10940794 $57.28
50748B000 SHROUD $169.36
70757B000 MOTOR $471.53
120662B000 SWITCH - ROCKER $12.02
1452833015 SCREW 8-32X3/4 PH PAN HD M $0.74
160750B000 CORD SET $29.02
190753B000 MOTOR $151.18
2265960000 CONNECTOR $5.02
2365959000 CLAMP VEN# G-20PH BNC 30420011 $1.42
260769B000 WASTE CONT ASSY P/N # 10941107
280645B000 WALL BRACKET $7.90
290633B000 INLET ASSY BNC # 30635598 $14.38
