NuTone CV850 Central Vacuum Can Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone CV850 Central Vacuum Can Parts

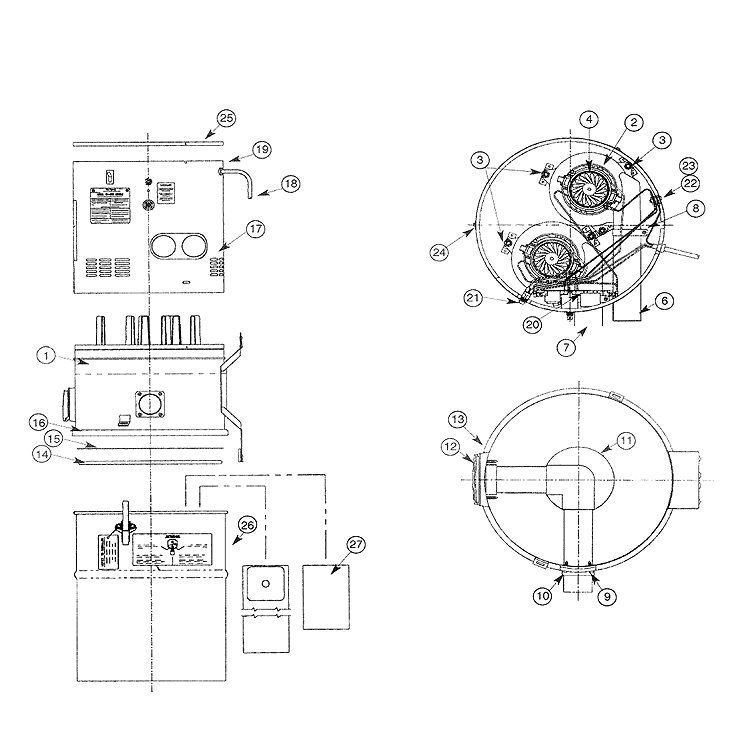

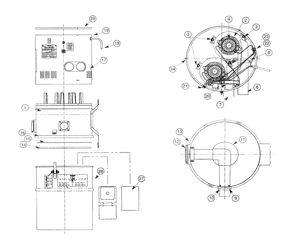

NuTone CV850 Central Vacuum Can Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
** 0679B000 BRUSH KIT #833423-62 $14.63
** S30364000 MOTOR GASKET
This product has been discontinued

** CF3918 FILTER BAGS - Set of 3, 8 Gallon $36.05
1 88356206 UPPER PAIL & BRACKET ASSY $112.07
2 S88698REB MOTOR ASSY - BNC 1094110 $647.10
3 52884015 SCREW 14-10X1 INDEN HEX/W-A- $0.70
4 88291000 COOLING VENT TUBE
This product has been discontinued

6 88289000 EXHAUST TUBE-LONG $8.74
7 88290000 EXHAUST TUBE-SHORT $8.64
8 39970000 CLAMP VENDOR # G-107PH $0.70
9 S33626000 MLD FLANGE ASY BNC 10941120
This product has been discontinued

10 52834015 SCREW 8X3/4 PH PAN HD A $0.04
11 33627000 TUBE ASSY BNC# 10941114
This product has been discontinued

14 S84129000 FILTER $50.40
17 88721000 WRAP AROUND BNC# 10941117 $42.26
18 88697000 CORD SET ASSY $13.10
19 65495000 STRAIN RELIEF $0.58
20 S62942000 CONTROL MODULE 240V
This product has been discontinued

21 S88699000 ROCKER SWITCH-3 POSITION
This product has been discontinued

22 52833015 SCREW 8-32X3/4 PH PAN HD M $0.74
25 88723000 COVER ASSEMBLY-INSULATED
This product has been discontinued

27 88370000 HARDWARE BAG ASY BNC# 10941115
This product has been discontinued

  S33836000 WALL PLATE ASY $86.40
  S33846000 Bottom Pail $68.40
