NuTone HD50LNT Heavy Duty Exhaust Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone HD50LNT Heavy Duty Exhaust Fan-Light Parts

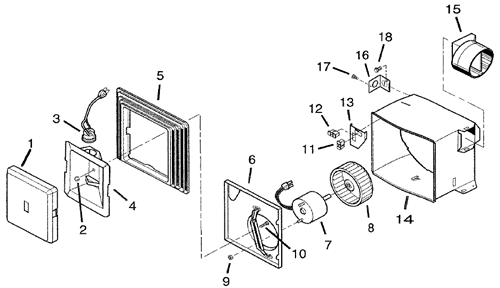

NuTone HD50LNT Heavy Duty Exhaust Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97011309 MOTOR ONLY FOR VERSION A $63.81
 S99080519 MOTOR ONLY FOR VERSION B $67.00
 S97014212 REFLECTOR - W/Lamp Socket $10.22
1S97013578 LENS PLASTIC $12.08
2S97005316 ACORN NUT $1.44
3S99770118 BULB HOLDER SOCKET/PLUG $4.92
4S97014211 LIGHT REFELCTOR ONLY-NO SOCKET) $6.24
5S97013974 GRILLE - 10 1/4" X 10 1/4" SQUARE $12.40
6S97014926 MOTOR PLATE $6.22
8S99020276 BLOWER WHEEL - 5 1/2" x 2 1/8", CCW, Black Plastic $6.96
9S99260425 NUT $0.82
10S99150582 GRILLE SCREW $0.64
12S99270981 RECEPTACLE - WHITE $2.22
13S98009612 WIRING PANEL $1.08
14S97014922 HOUSING ASSY $13.64
15S97014185 DAMPER/DUCT CONNECTOR ASSY $5.10
16S98008868 WIRING PLATE $2.14
17S99170245 SHEET METAL SCREW #8-18 X .375 $0.82
18S99150471 GROUND SCREW $0.82
