NuTone HD50NT 50 Cfm Heavy Duty Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone HD50NT 50 Cfm Heavy Duty Fan Parts

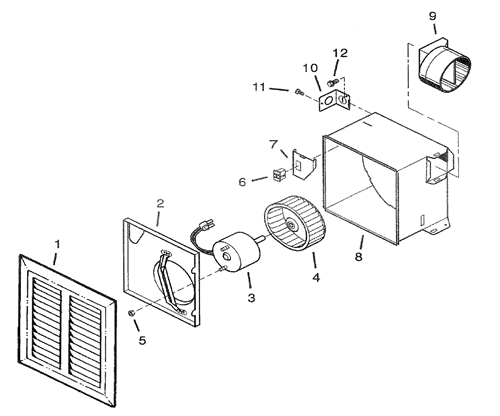

NuTone HD50NT 50 Cfm Heavy Duty Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 FG500NS Bathroom Exhaust Fan Grille/Cover w/ LED Light (11 x 9 3/4) $40.18
0 FG600S Bathroom Exhaust Fan Grille/Cover w/ LED Light (FG600S) $40.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
  FG800SPKS Bluetooth Upgrade Grille/Cover w/ LED Light (11" x 9-3/4" x 2" grille ) $86.63
1 S97015584 GRILLE - 10 1/4" X 10 1/4" SQUARE $59.22
2 S97014926 MOTOR PLATE $30.60
  S97011309 MOTOR ONLY FOR VERSION A (use s97009745)
This product has been discontinued
  S97009745 Motor Assembly for the A version $98.70
  S97015161 BLOWER ASSEMBLY-B/C (2,3,4) $120.32
3 S99080519 MOTOR B VERSION - Shaft Size 1 1/4" $76.14
4 S99020276 BLOWER WHEEL - 5 1/2" x 2 1/8", CCW, Black Plastic
This product has been discontinued
5 S99260425 NUT $2.40
6 S99270982 RECEPTACLE - BLACK $18.00
7 S98009611 WIRE PANEL $27.26
8 S97014922 HOUSING ASSY $34.78
9 S97003932 DUCT CONNECTOR ASSY $27.26
10 S98008868 WIRING PLATE $18.00
11 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
12 S99150471 GROUND SCREW $18.00
