NuTone HD80LNT 80 Cfm Heavy Duty Fan W/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

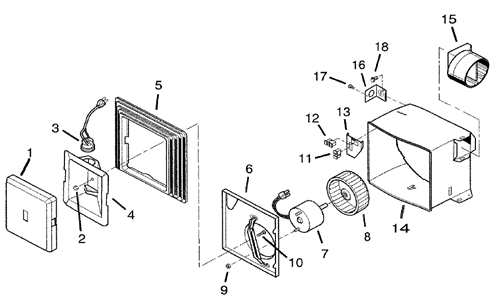

NuTone HD80LNT 80 Cfm Heavy Duty Fan W/Light Parts
NuTone HD80LNT 80 Cfm Heavy Duty Fan W/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 7" spring gap) $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 7" spring gap) )(FG600S) $40.18
0 FG800SPKNS Upgrade Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  HD80L Complete New Production (R 8X8.25 X 5.75 F 10.25sqr) $115.22
  FG800SPKS Upgrade Bluetooth Exhaust Fan Grille/Cover w/ LED Light $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
5 S97013974 GRILLE ONLY E,F,G - (10 5/8 X 11.25) $27.26
1 S97013578 LENS PLASTIC E,F,G VERSION
This product has been discontinued
2 S97005316 ACORN NUT $27.26
4 S97014212 REFLECTOR - W/Lamp Socket $27.26
3 S99770118 BULB HOLDER SOCKET W/PLUG $27.26
4 S97014211 LIGHT REFELCTOR-NO SOCKET
This product has been discontinued
7 S97015162 MOTOR ASSY(6,7,8) VERSION C,D $131.60
6 S97014926 MOTOR PLATE $30.60
7 S99080520 MOTOR ONLY VERSION B,D- Shaft Size 1 1/4" $95.73
8 S99020276 BLOWER WHEEL B version- 5 1/2" x 2 1/8", CCW, Black Plastic
This product has been discontinued
9 S99260425 NUT $2.40
10 S99150582 GRILLE SCREW $33.84
12 S99270981 RECEPTACLE - WHITE $27.26
13 S98009612 WIRING PANEL $18.00
14 S97014922 HOUSING ASSY $34.78
15 S97014185 DAMPER/DUCT CONNECTOR ASSY $27.26
16 S98008868 WIRING PLATE $18.00
17 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
18 S99150471 GROUND SCREW $18.00
