NuTone HD80NT 80 Cfm Heavy Duty Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone HD80NT 80 Cfm Heavy Duty Fan Parts

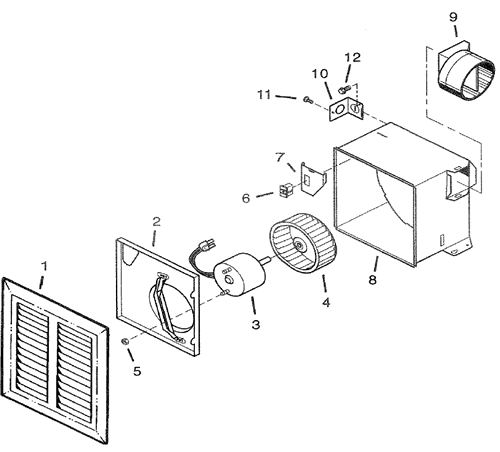

NuTone HD80NT 80 Cfm Heavy Duty Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97015584 GRILLE - 10 1/4" X 10 1/4" SQUARE $36.86
2S97014926 MOTOR PLATE $6.22
3S99080520 MOTOR - Shaft Size 1 1/4" B & D $68.16
3S97015162 MOTOR ASSY (b version) $93.58
3S97009745 Motor Assemble for A version $74.10
4S99020276 BLOWER WHEEL - 5 1/2" x 2 1/8", CCW, Black Plastic $6.96
5S99260425 NUT $0.82
6S99270982 RECEPTACLE - BLACK $4.00
7S98009611 WIRE PANEL $1.08
8S97014922 HOUSING ASSY $13.64
9S97003932 DUCT CONNECTOR ASSY $6.64
10S98008868 WIRING PLATE $2.14
11S99170245 SHEET METAL SCREW #8-18 X .375 $0.82
12S99150471 GROUND SCREW $0.82
