NuTone M600 Utility Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone M600 Utility Fan Parts

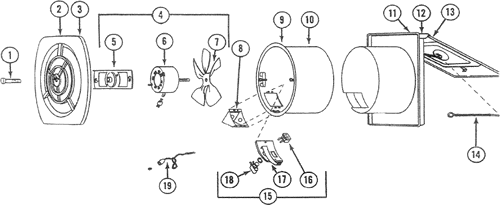

NuTone M600 Utility Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
 S99010042 ALUMINUM FILTER - 9 1/2" Diameter $12.16
4S16665000 MOTOR, BLADE & BRACKET ASSY (cw motor open pancake motor assembley 2800rpm) $140.02
5S11829000 MOTOR BRACKET ASSY $9.00
6S26750SER MOTOR - #JA2C271 JA2C134, CCW, Shaft Size 3/4 " $111.20
7S11805000 FAN BLADE ASSEMBLY - METAL, 6 BLADE, CCW $17.24
16SNT10034000 RECEPTACLE (BLACK) $4.00
