NuTone QT100LH Humidity Sensing Fan-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT100LH Humidity Sensing Fan-Light Parts

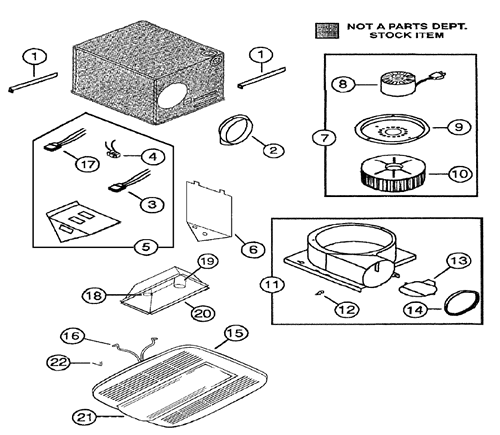

NuTone QT100LH Humidity Sensing Fan-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
4SNT10034000 RECEPTACLE (BLACK) $4.00
7S0696B000 POWER UNIT ASSY (motor,wheel,bracket) $110.59
8S86322000 MOTOR ONLY - #JA2C394N, CW, Shaft Size 1/4" x 1" $57.28
9S65071000 MOTOR MOUNT BRACKET $10.28
10SNT5901A000 BLOWER WHEEL - White Plastic, CW, 6-1/8" x 2" $17.54
11S1307A000 BLOWER HOUSING
12S27538000 BUMPER $1.10
13S65060000 LOUVER $2.38
14S26572000 FOAM SEAL $2.58
15S85984000 GRILLE (Includes Springs) (13 1/4" x 13 1/4" x 1/2") Lens obsoleted
Discontinued, no longer available. Please call for possible alternatives.

18S85041000 LAMP SOCKET - Nite Lite $2.78
22S84203000 SPEED CLIP $0.64
