NuTone QT90 Quiettest Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QT90 Quiettest Exhaust Fan Parts

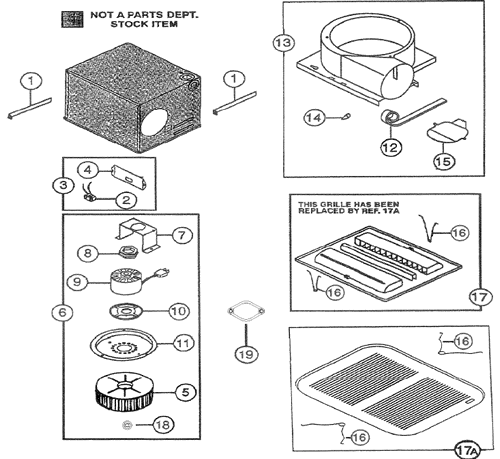

NuTone QT90 Quiettest Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
2SNT10034000 RECEPTACLE (BLACK) $4.00
3S11119000 OUTLET BOX ASSY $7.96
5S44345000 BLOWER WHEEL - Metal, CCW, 5 3/4" x 2" $20.25
6S86325000 POWER UNIT ASSEMBLY $126.26
8S19359000 MOTOR MOUNT $4.68
10S19360000 MOTOR MOUNT HEX Jas# 8110181 $6.18
10S99260567 Motor Mounting Nut (2 Required & Sold Individually) $3.24
11S65071000 MOTOR MOUNT BRACKET $10.28
12S26572000 FOAM SEAL $2.58
13S1307A000 HOUSING ASSY
13S84607000 GRILLE ASSY - (14 1/4" X 12" X 1/2") $14.32
14S27538000 BUMPER $1.10
15S65060000 LOUVER $2.38
18S63007000 NUT-PUSH 1/4 $0.86
19S32787000 MOTOR INSUL MOUNT Jas# 8114138 $4.04
