NuTone QTREN110FL Ultra Quiet Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

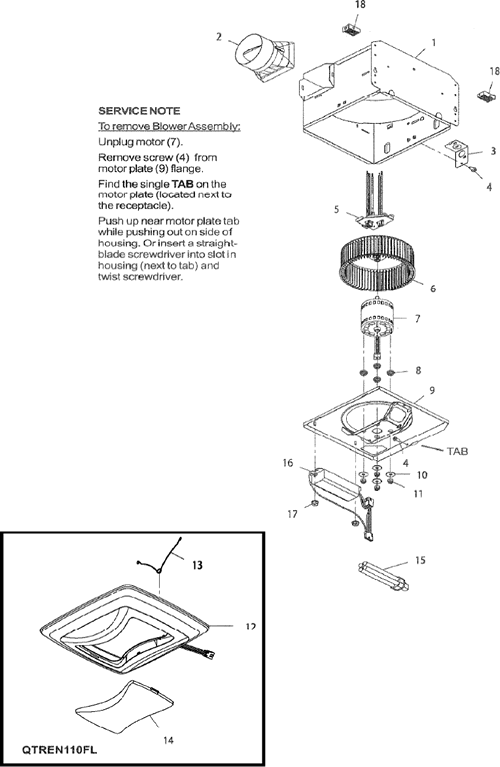

NuTone QTREN110FL Ultra Quiet Exhaust Fan Parts
NuTone QTREN110FL Ultra Quiet Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 HOUSING $59.22
  SQTHB1 HANGER BARS (1 Set) $23.24
2 S97016449 DUCT CONNECTOR-4" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97016585 WIRE PANEL/HARNESS ASSY $30.08
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $33.84
7 S97017851 Blower Assembly - see 97020050
This product has been discontinued

7 S97017856 Blower Assy for A version see 97020050
This product has been discontinued

7 S97020050 Blower Asy for B/C version (lighted) $153.90
8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016468 MOTOR PLATE $35.10
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 NUT, Hex Lock #8-32 $18.00
12 S97016612 GRILLE & SPRING A version obsolete see 97018274
This product has been discontinued

13 S99140199 GRILLE SPRING (2 required) $18.00
12 S97018274 Grille Assembly Complete W/Lens Replacement for discontinued S97016869.
This product has been discontinued

14 S99111401 Lens Version B rectangle
This product has been discontinued

14 S99111310 Lens - Light Bulb Cover Version A kidney shape)
This product has been discontinued

15 S99271311 18 Watt FLUORESCENT TUBE 2 pin $26.55
16 S97016618 BALLAST -6 PIN
This product has been discontinued

15 S99271381 Bulb - New Converted Grille Design - Fluorescent, 18 Watt, GU24 Base - 2 Required $28.80
17 S99260488 NUT $18.00
18 S97018014 "I" Joist Spacer Block - 2 Required $27.26
  S99271426 Night Light 4 watt $18.00
