NuTone QTXEN080FL Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN080FL Exhaust Fan Parts

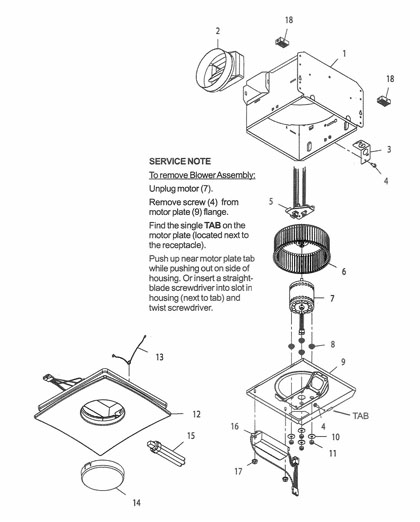

NuTone QTXEN080FL Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTHB1 HANGER BAR KIT - KIT INCLUDES 2 HANGER BARS $18.36
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97016466 HOUSING $59.22
2 S97016450 DUCT CONNECTOR $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SCREW, #8-18 x .375 (2 REQUIRED) $18.00
5 S97016585 WIRE PANEL / HARNESS $30.08
6 S99020284 BLOWER WHEEL- A version $33.84
7 S99080562 MOTOR see s97020049
This product has been discontinued

7 S97020049 Motor Assemble (Motor, Blade & Bracket) $154.80
7 S97017850 MOTOR ASSEMBLY - see s97020049
This product has been discontinued

8 S99100491 ISOLATOR (4 REQUIRED) $27.26
9 S97016468 MOTOR PLATE (CURRENT VERSION) $35.10
9 S97016901 MOTOR PLATE (ORIGINAL VERSION) $11.31
10 S99250959 WASHER #8 (4 REQUIRED) $18.00
11 S99260558 NUT, HEX LOCK #8-32 (4 REQUIRED) $18.00
12 S97018272 GRILLE ASSEMBLY "NEW" SQUARE (w/ conversion kit requires removal of balllast)) (OLD ROUND OBSOLETED)
This product has been discontinued

12 S97016545 Old Style Grille/Lens with round lens (s99111287)
This product has been discontinued

13 S99140199 GRILLE SPRING (2 REQUIRED) $18.00
14 S99111287 LENS-ROUND ON PDF (NEW RECTANGLE LENS -99111400) $29.70
14 S99111400 LENS "NEW SQUARE (NEW SQUARE FRILLE) $59.22
15 S99271381 BULB - NEW CONVERTED GRILLE DESIGN - FLUORESCENT 18 WATT, GU24 BASE - 2 REQUIRED $28.80
15 S99271311 BULB, 18 W FLUORESCENT 2 pin $26.55
16 S97016568 BALLAST ASSEMBLY-5 PIN
This product has been discontinued

16 S97016618 BALLAST WITH PLUGS FOR FLUORESCENT BULB-6 PIN
This product has been discontinued

17 S99260488 NUT, HEX #10-24 (2 REQURED) $18.00
18 S97018014 "I" JOIST SPACER BLOCK - 2 REQUIRED $27.26
18 S99111293 SPACER (2 REQURED) $1.20
  S99271426 Night Light $18.00
