NuTone QTXEN080FLT Ventilation Fan/Light 80 Cfm Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

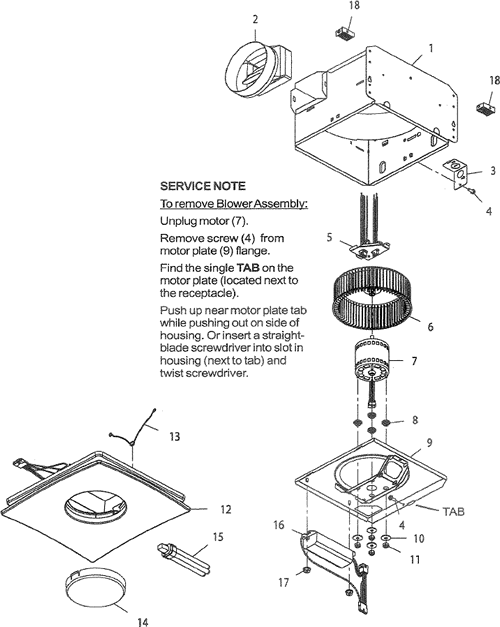

NuTone QTXEN080FLT Ventilation Fan/Light 80 Cfm Parts
NuTone QTXEN080FLT Ventilation Fan/Light 80 Cfm Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTXEN08FLT New Production Complete
This product has been discontinued
  QTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars $18.36
1 S97016466 HOUSING $59.22
2 S97016450 DUCT CONNECTOR-6" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97018011 Wire Panel Cover & Harness Assembly - Includes Receptacles for Fan & Lights $33.84
6 S99020284 BLOWER WHEEL Aversion - 8" x 2 3/4", CCW, Black Plastic $33.84
6 S97017863 Blower Wheel - QTXEN080FLT-B,C version $27.26
7 S97017850 Motor Assy (current version old motor obsoleted see s97020049)
This product has been discontinued
7 S97020049 Motor Assembley (Motor, Blade, & Bracket) $154.80
8 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
9 S97016901 MOTOR PLATE (current version) $11.74
9 S97016468 Mounting Bracket & Plate - QTXEN080FLT-A $35.10
10 S99250959 WASHERS #8 c .625 (4 required) $18.00
11 S99260558 Motor Mounting Nut - QTXEN080FLT-A - #8-32 - 4 Required $18.00
13 S99271381 Bulb - QTXEN080FLT-C - New Grille Design - Fluorescent, 18 Watt, GU24 Base - 2 Required $28.80
15 S97016618 BALLAST ASSEMBLY
This product has been discontinued
17 S97018272 GRILLE ASSEMBLY W/ LENS(New Rectangle Lens w/ conversion kit must remove old ballast)
This product has been discontinued
17 S97016545 Old Style Grille w/ round lens-s99111287 (2 left) A version only
This product has been discontinued
18 S99140199 GRILLE SPRING (2 required) $18.00
18 S97018014 "I" Joist Spacer Block - 2 Required $27.26
19 S99271358 FLUORESCENT BULB, 42 Watt $59.22
20 S99111287 LENS-round ON PDF (new rectangle Lens -99111400) $29.70
  S99271426 Night Light 4 watt $18.00
