NuTone QTXEN110SFLT Humidity Sensing Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXEN110SFLT Humidity Sensing Fan/Light Parts

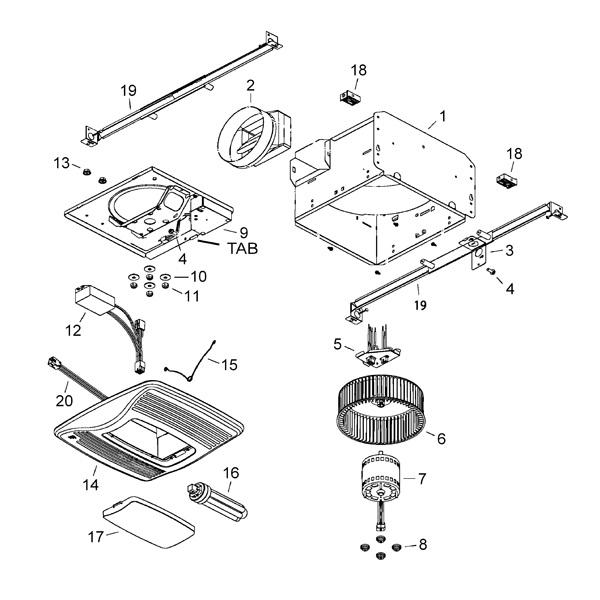

NuTone QTXEN110SFLT Humidity Sensing Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97016466 HOUSING $59.22
2 S97016450 DUCT CONNECTOR-6" $27.26
3 S98010102 WIRING PLATE $33.84
4 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
5 S97017086 WIRE PANEL/WIRE HARNESS $42.30
6 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic for version "A" $33.84
6 S97017863 BLOWER WHEEL - QTXEN110SFLT-B,C version $27.26
7 S97017084 Motor Assembly w/ contoler module(a,b,c d,e version only)
This product has been discontinued

7 S97017088 Motor W/ Humidity (A,b version) 4 pin flourecent light) see 97020051
This product has been discontinued

7 S97020051 Motor Assembly, Motor, Blade, Bracket for Lighted Humidity -No sensor $160.20
7 S97020044 MOTOR,Blade, Bracket (VERSION #A,B PRIOR TO 7/08 ) $110.92
8 S99100491 RUBBER MOUNT ISOLATOR (4 REQUIRED) SOLD $27.26
9 S97017084 MOTOR PLATE & CONTROL ASSEMBLY (a,b,c,d,e) $104.02
9 S97020052 Humidity Controler (c,d,e version) (a,b order S97016967 grill kit) $137.24
10 S99250959 WASHERS #8 c .625 (4 REQUIRED) SOLD EACH $18.00
11 S99260558 NUT, HEX LOCK #8-32 $18.00
12 S97016864 BALLAST ASSEMBLY a,b
This product has been discontinued

13 S99260423 NUT, HEX #8-32 (4 REQUIRED) SOLD EACH $18.00
14 S99111345 GRILLE ASSEMBLY W/ LENS & SPRINGS (13 1/2 X 13) a/b/c/d/e version $27.26
14 S97016967 GRILLE ASSEMBLY & CONVERSION KIT w/humidity sensor (a,b.c,d,e version) $250.98
15 S99140199 GRILLE SPRING (2 REQUIRED) $18.00
16 S99271358 FLUORESCENT BULB, 42 WATT for version a,b $59.22
16 S99271381 BULB FLOURCENT GU24-18WATT for version c,d,e(2 REQUIRED SOLD SEPERATE) $28.80
17 S99111345 Light Lens Plastic $27.26
18 S97018014 SPACER(2) $27.26
19 SQTNHB1 HANGER BARS (1 Set) $15.98
20 S99271344 SENSOR WIRE HARNESS $27.26
  S99271426 Night Light 4 watt $18.00
