NuTone QTXN110HFLT Quiet Bathroom Ceiling Exhaust Fan/Light/Heater/ Night Light Parts

Listed below are the parts available for this model.

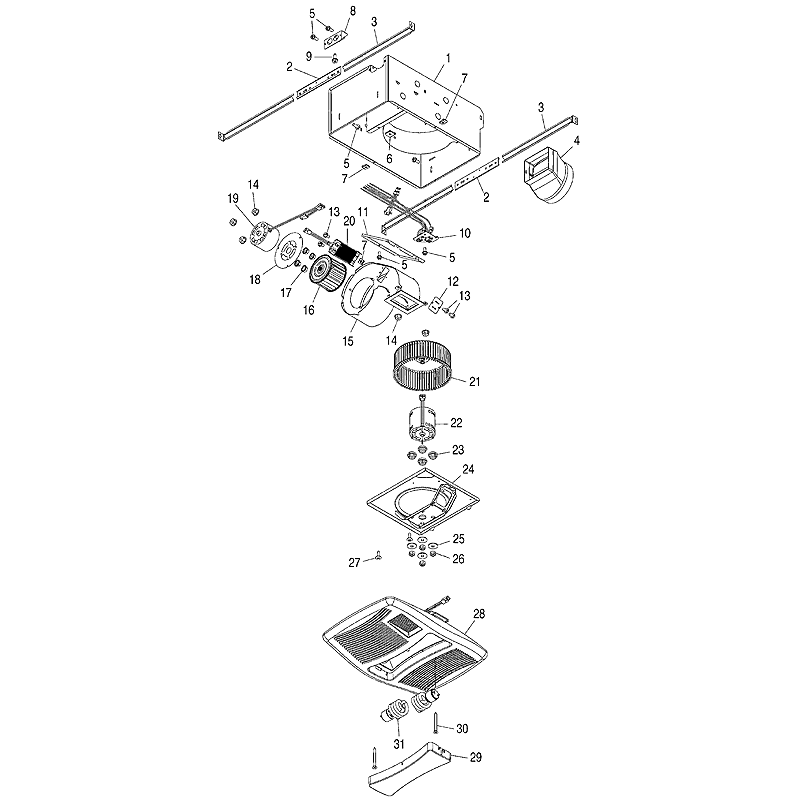

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXN110HFLT Quiet Bathroom Ceiling Exhaust Fan/Light/Heater/ Night Light Parts
NuTone QTXN110HFLT Quiet Bathroom Ceiling Exhaust Fan/Light/Heater/ Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTXN110HFLT New Current production(17-5/8" X 11-3/8" housing fits 2" x 8" Grille20 X 15
This product has been discontinued
1 77DW 4 Function single gang Swtich White ( FVWCSW41-W replacement)
This product has been discontinued
1 77DV (Optional) Ivory Wall Switch (77DV)
This product has been discontinued
2 S98007763 Channel for Support Angle (2 Required) $3.78
3 S98003036 Hsg. Mounting/Support Angle (4 Req.) $27.26
4 S97016450 6" Damper/Duct Connector $27.26
9 S99170245 Screw f/ Mntg. Above Channel (4 Req.) $18.00
14 S99260423 Nuts for Attaching Heater Motor to Motor Mount Below (4 Required) $18.00
16 S99020283 Wheel for Heater $27.26
17 S99260488 Nuts for Attaching Heater Motor to Heater Scroll (3 Required) $18.00
18 S98010088 Metal Heater Motor Mount Which Is Between Heater Motor and Heater Wheel $27.26
18 S99100491 Rubber Isolator for Exhaust Fan Motor (4 Req.) $27.26
19 S99250959 Washer for Exhaust Fan Motor (4 Req.) $18.00
19 S99080558 Motor for Heater $77.08
19 S97020889 Complete Heater Assembly $290.46
20 S97020888 Heater Element - Inlcudes Thermal Protector/Thermolink $51.70
20 S99260558 Nut for Exhaust Motor Attachment (4 Req.) $18.00
21 S99150471 Ground Screw $18.00
21 S97016567 Complete Exhaust Fan Assembly $178.60
21 S99020284 Wheel for Exhaust Fan $33.84
22 S99080556 Motor for Exhaust Fan $94.00
27 S99260512 Sheet Metal Nut for Above Grille Screw Attaching (2 Req.) $27.26
24 S97016471 Motor Bracket/Partition Plate for Exhaust Fan $80.01
28 S97018036 Grille Assembly with Lens and Sockets $193.64
29 S99111461 Light Lens $27.26
30 S99150622 Grille Screw #8-18 x 2.0 (2 Required) $33.84
31 S99271381 Fluorescent Bulb 18 Watt, GU24 Base (2 Req.) $28.80
