NuTone QTXN110HL Ceiling Ventilation Fan/Light/Heater/ Night Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone QTXN110HL Ceiling Ventilation Fan/Light/Heater/ Night Light Parts

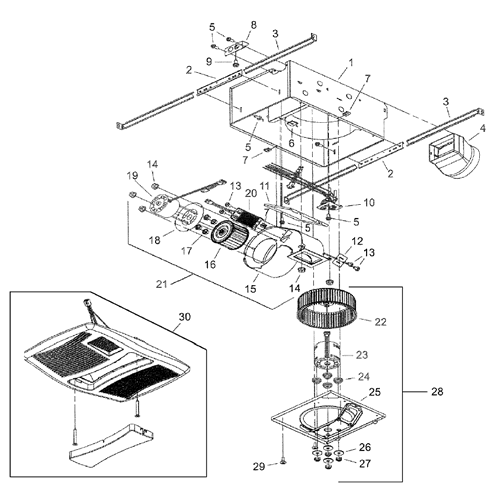

NuTone QTXN110HL Ceiling Ventilation Fan/Light/Heater/ Night Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  QTX110HL New Current production (17-5/8" X 11-3/8" housing fits 2" x 8" Grille20 X 15
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  77DV 4 Function single gang Swtich Ivory
This product has been discontinued

  77DW 4 Function single gang Swtich White ( FVWCSW41-W replacement)
This product has been discontinued

1 S97016470 HOUSING $122.20
2 S98007763 BRKT-CHANNEL $3.78
3 S98003036 MOUNTING BRACKET $27.26
4 S97016450 DUCT CONNECTOR-6" $27.26
5 S99170245 SHEET METAL SCREW #8-18 X .375 $18.00
6 S93260454 NUT $27.26
7 S99260512 NUT $27.26
8 S98010091 COVER/KO PANELF/US-HFL $4.97
9 S99150471 GROUND SCREW $18.00
10 S97016563 WIRE PANEL/WIRE HARNESS $83.66
11 S98010090 WIRE COMPARTMENT $5.29
12 S98010089 MOUNTING BRACKET-HEATER $33.84
13 S99150415 SHEET METAL SCREW $27.26
14 S99260488 NUT $18.00
16 S99020283 WHEEL-HEATER $27.26
17 S99260423 NUT, Hex #8-32 $18.00
18 S98010088 MOTOR MOUNT $27.26
19 S99080558 MOTOR - HEATER $77.08
20 S97020888 HEATING ELEMENT $51.70
21 S97020889 HEATER SCROLL ASSY parts 12-20 $290.46
22 S99020284 BLOWER WHEEL - 8" x 2 3/4", CCW, Black Plastic $33.84
23 S99080556 MOTOR - FAN $94.00
24 S99100491 RUBBER MOUNT ISOLATOR (4 required) $27.26
25 S97016471 PARTITION $86.32
26 S99250959 WASHERS #8 c .625 (4 required) $18.00
27 S99260558 NUT, Hex Lock #8-32 $18.00
28 S97016567 FAN BLOWER ASSY - Parts see 21-26 $178.60
29 S93150459 SCREW $27.26
30A S97016473 GRILLE ASSY - Grill, Lens(99111461), w/ Socket $211.50
30B S99111461 LENS ONLY - GRILLE SOLD SEPARATE SEE 97016473 $27.26
  S99111461 Light Lens - QTXN110HL $27.26
