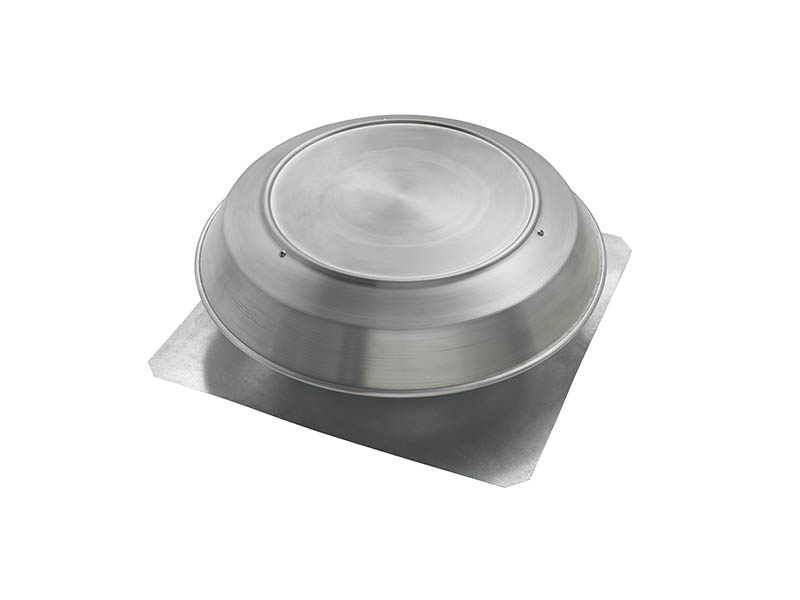

NuTone RF68HRPSC Attic Roof Exhaust Fan Parts

Listed below are the parts available for this model.

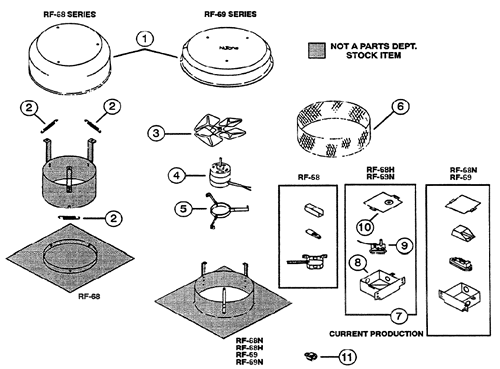

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone RF68HRPSC Attic Roof Exhaust Fan Parts
NuTone RF68HRPSC Attic Roof Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 356BR New current production(WILL NOT FIT INTO EXISTING HOUSING-1600cfm brown plastic $171.29
 356BK New current production(WILL NOT FIT INTO EXISTING HOUSING-1600cfm-black plastic $171.29
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $0.82
3S87402000 FAN 5 BLADE 14" w/ 4" PITCH
4S87405000 MOTOR - MCMILL# DO816B2778 $153.76
7S88007000 OUTLET BOX & THERMOSTAT $23.92
11S0419B000 CAPACITOR $16.10
