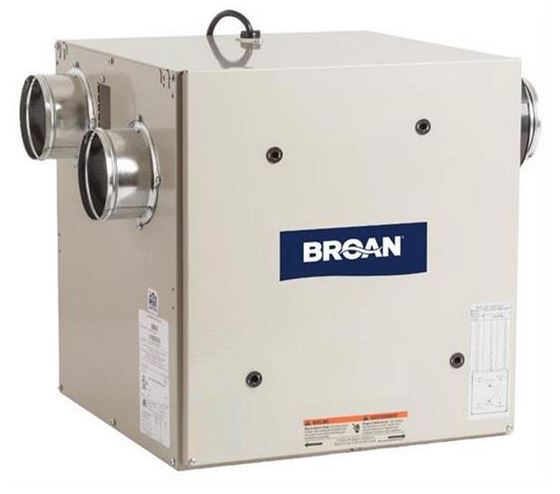

Venmar K7ERV 44163 AVS® K Series™ ERV 78 CFM 66% SRE Side ports

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Venmar K7ERV 44163 AVS® K Series™ ERV 78 CFM 66% SRE Side ports

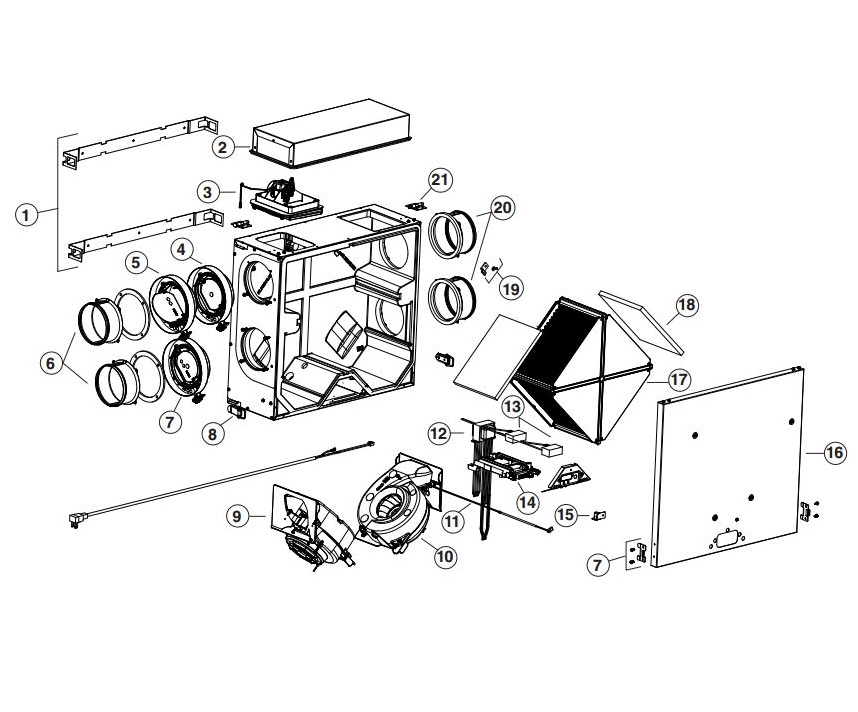

Venmar K7ERV 44163 AVS® K Series™ ERV 78 CFM 66% SRE Side ports breakout small

Part Key	Part Number	Description	Unit Price
1	SV18854	4" Round Metal Port (2 reqired sold each)	$104.72
2	SV19207	Electronic Control	$187.06
3	SV16042	Capacitor 5uf	$44.17
4	SV17244	Transformer	$149.46
5	SV19211	Capacitor 13 uf	$111.60
6	SV19208	Filter Retaining Wires	$55.57
7	SV18883	Core Filters 2 REQUIRED SOLD EACH	$49.82
8	SV19201	Door Assembly	$239.74
9	SV19200	Energy Recovery Core	$346.86
10	SV18867	Blower Assembly	$633.56
11	SV18881	Horizontal Ports Damper System	$277.30
12	SV19212	4" Port Straps	$81.38
13	SV18855	4" Double Collar Port w/ Damper	$114.39
14	SV19213	Hardware Kit	$44.12
15	SV16416	PCB Connector	$67.68
