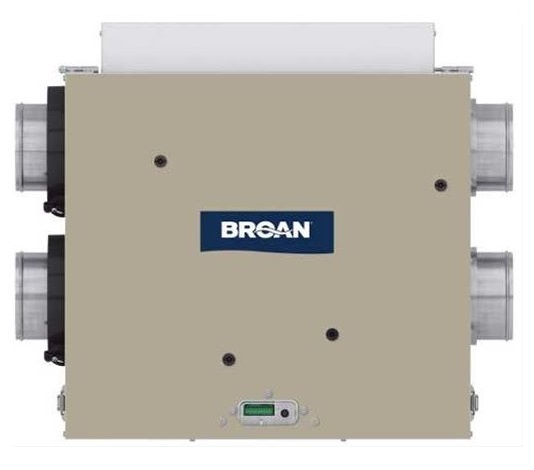

Venmar S10ERV PLUS 41702 Ceiling Mount Series 50

Venmar S10ERV PLUS 41702 Ceiling Mount Series 50 – 100 cfm

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Venmar S10ERV PLUS 41702 Ceiling Mount Series 50 – 100 cfm

Venmar S10ERV PLUS 41702 Ceiling Mount Series 50 – 100 cfm breakout small

Part Key	Part Number	Description	Unit Price
1	SV61240	Installation Brackets	$102.83
2	SV61213	Recirculation Channel Kit	$117.14
3	SV61214	Damper System Kit	$203.98
4	SV61236	Cold Side 5" Metal Port Kit (sold each 2 required)	$88.34
5	SV61215	Adjustable Port Kit	$73.53
6	SV61218	Door Bracket Kit	$87.26
7	SV61235	Blower Kit #1	$350.62
8	SV61234B	Blower Kit #2 w/ capacitor (sv63410b obsoleted)	$350.12
9	SV16042	Capacitor - 5uf (2 required sold each)	$44.17
10	SV61229	Electronic Board Kit	$167.32
11	SV61241	Magnet w/ Bracket Kit	$87.42
12	SV61224	Magnet with Bracket Kit	$82.42
13	SV61224	Door Assembly	$249.91
14	SV21029	Filter Kit (2 required sold each)	$45.12
15	SV21030	Optional Merv 8 (sold each 2 required)	$17.60
16	SV61223	ERV Core	$620.40
17	SV61237	Core Locking Device Kit	$25.54
18	SV61217	Warm Side 5" Metal Port Kit (sold Each 2 required)	$74.97
19	SV61228	Door Metal Hinges Kit (sold Each 2 required)	$60.70
20	SV61233	Warm Side Thermistor	$64.87
21	SV16416	Terminal Connector	$67.68
22	SV61221	Cold Side Thermistor	$90.94
23	SV61239	Optional Hardware Kit	$53.06
