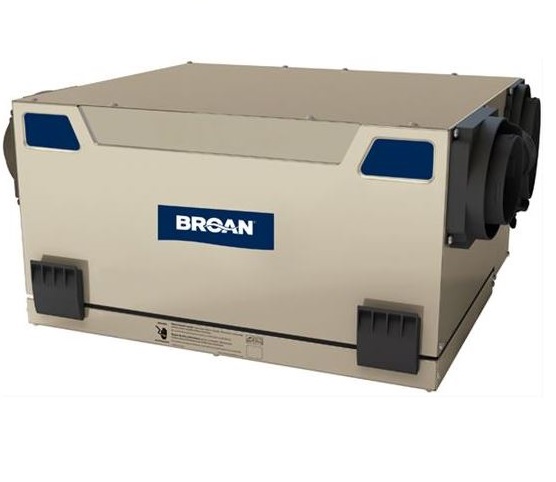

Venmar S10ERVECM 41708 AVS® S Series™ ERV 110 CFM 68% SRE Side ports

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Venmar S10ERVECM 41708 AVS® S Series™ ERV 110 CFM 68% SRE Side ports

Venmar S10ERVECM 41708 AVS® S Series™ ERV 110 CFM 68% SRE Side ports breakout small

Part Key	Part Number	Description	Unit Price
1	SV61240	Installation Brackets	$102.83
2	SV61219	Balancing Backdraft Damper Port Kit	$85.34
3	SV61236	Cold Side 5" Metal Port Kit (2 required sold each)	$88.34
4	SV61215	Adjustable Port Kit	$73.53
5	SV61218	Door Metal Keepers and Latches Kit	$54.42
6	SV63411	Blower Assembly - #1 W/CAPACITOR	$398.56
7	SV63410B	Blower Kit #2 W/ CAPACITOR This product has been discontinued
8	SV16042	Capacitor - 5UF	$44.17
9	SV61241	Magnet w/Bracket Kit	$87.42
10	SV21029	FILTER kIT	$45.12
11	SV21030	Optional MERV 8 (2 required sold each)	$17.60
12	SV61223	ERV CORE	$620.40
13	SV61237	Core Locking Devce Kit	$25.54
14	SV61217	Warm side 5" Metal Port Kit (2 required sold each)	$74.97
15	SV61228	Door Metal Hinges Kit	$60.70
16	SV61233	Warm Side Termistor	$64.87
17	SV16416	Terminal Connector	$67.68
18	SV61221	Cold Side Termistor	$90.94
19	SV61239	Optional Hardware Kit	$53.06
