NuTone 665SP Valuetest Heat-A-Ventlite Parts
Fan Replacement PDF
Heater Replacement PDF

Listed below are the parts available for this model.

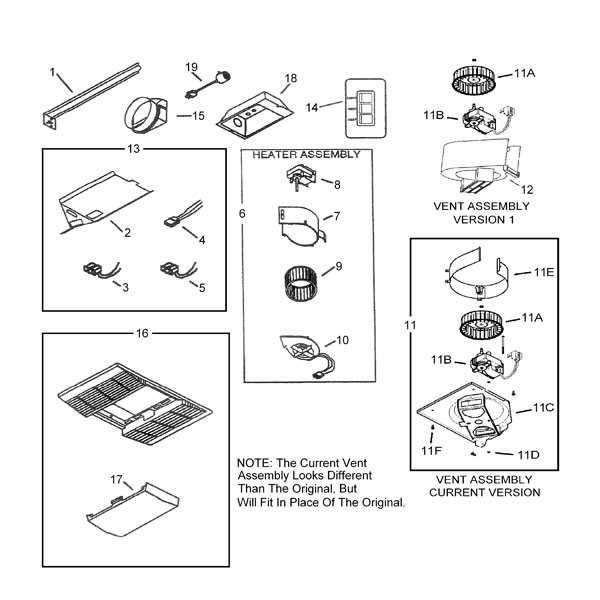

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

NuTone 665SP Valuetest Heat-A-Ventlite Parts
NuTone 665SP Valuetest Heat-A-Ventlite Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BHFLED80 New Complete Unit, will not fit into exsisting housing. 14.25" X 8.25" X 5.75" Rough in dimensions 16.25"-X 9.75" GRILLE $197.33
1 S44388000 Hanger Bar $33.84
3 S99270981 Receptacle - White $27.26
4 S89843000 Plug Hsg (Heat) $9.30
5 S99270982 Receptacle - Black $18.00
6 89844000 Heater Assembly Includes 7,8,9,10 (Plastic Housing #1 w 3-prong plug)
This product has been discontinued
  89844KIT Motor, Blade, Element, Screws (must have plastic housing) $171.11
7 S61579000 Scroll Heater Plastic(Ver#1)
This product has been discontinued
9 S66583000 Blower Wheel - (Heat), Cw, 3 3/4" X 2" (Ver#1) $24.30
10 S89756000 Heater Element (Includes Thermal Protector (Ver#1)) $115.62
12b 86693000 Vent Motor Assy - Motor modified/Blade To Fits IPlastic Housing-obsolete (Ver#1), Prior To 2005 (Includes 11A,11B ) $72.82
11 S97017646 Vent Complete (New Metal Flat Bracket,Motor,Blade After 2005) $91.18
11A S82403000 Blower Wheel - White Plastic, 5"X 1 1/4" (Ver#1) $27.26
11A S65462000 Compression Clip $1.48
11B S99080592 Motor - Vent For Metal Plate (Ver#2) $67.68
11C S97017080 Motor Mounting Plate Metal Plate (Ver#2) $27.26
11D S99260428 Motor Nut $18.00
11E S98010286 Scroll Band (Version #2) $27.26
11F S99150576 Screw, #8 X 3/8" Sheet Metal $27.26
14 S85627000 Switch Complete 3 Function Single Gang $26.05
15 S101183000 Duct Adapter $27.26
16 S89852000 Grille & Lens (16 1/4" X 9 3/4" X 1 3/4") $67.68
22 S53740000 Lens - (5 1/4" X 9 3/4") $27.26
18 S89765000 Reflector $27.26
24 S99770112 Lamp Socket - 100W $27.26
  S98010306 Light Reflector $33.84
